product

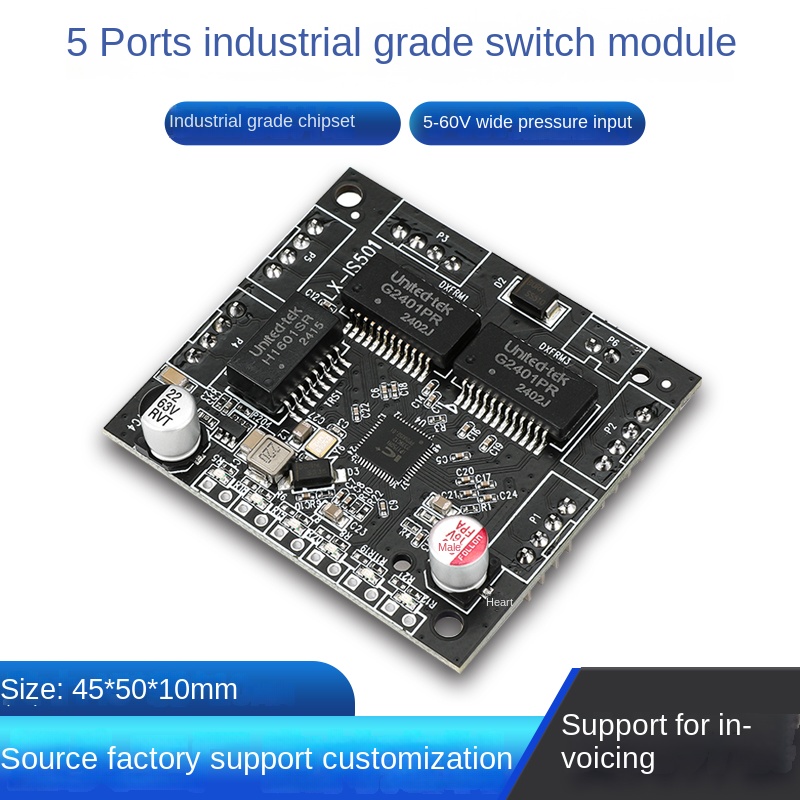

LX-IS501-2

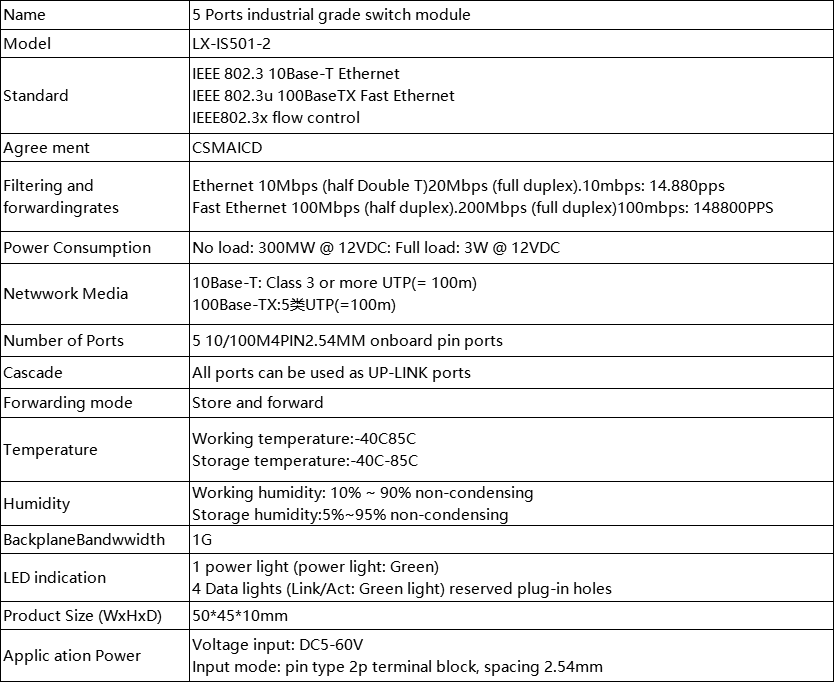

| Name | 5-Port industrial grade switch module |
| Model | LX-IS501-2 |
| Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u100BaseTX Fast Ethernet EEE802.3x flow control |
| Agree ment | CSMAICD |
| Filtering and forwarding rates | Ethernet 10Mbps (half duplex), 20Mbps (full duplex).10mbps: 14.880pps Fast Ethernet 100Mbps (half duplex).200Mbps (full duplex)100mbps: 148800PPS |
| Power Consumption | No load: 300MW @ 12VDC: Full load: 3W @ 12VDC |
| Network Media | 10Base-T: Class 3 or more UTP(=100m) 100Base-TX:5类UTP(=100m) |
| Number of Ports | 510/100M4PIN2.54MM onboard pin ports |
| Cascade | All ports can be used as UP-LINK ports |
| Forwarding mode | Store and forward |
| Temperature | Working temperature:-40C85C Storage temperature:-40C-85C |
| Humidity | Working humidity: 10%~90% non-condensing Storage humidity:5%~95% non-condensing |
| BackplaneBandwwidth | 1G |
| LED indication | 1 power light (power light: Green) 4 Data lights (Link/Act: Green light) reserved plug-in holes |

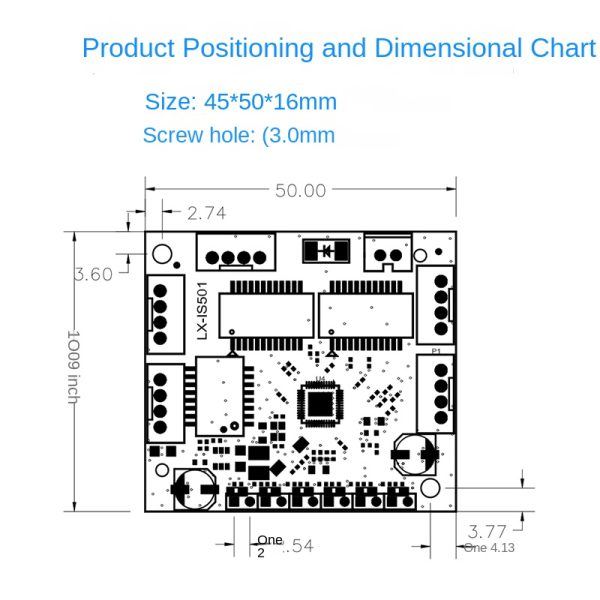

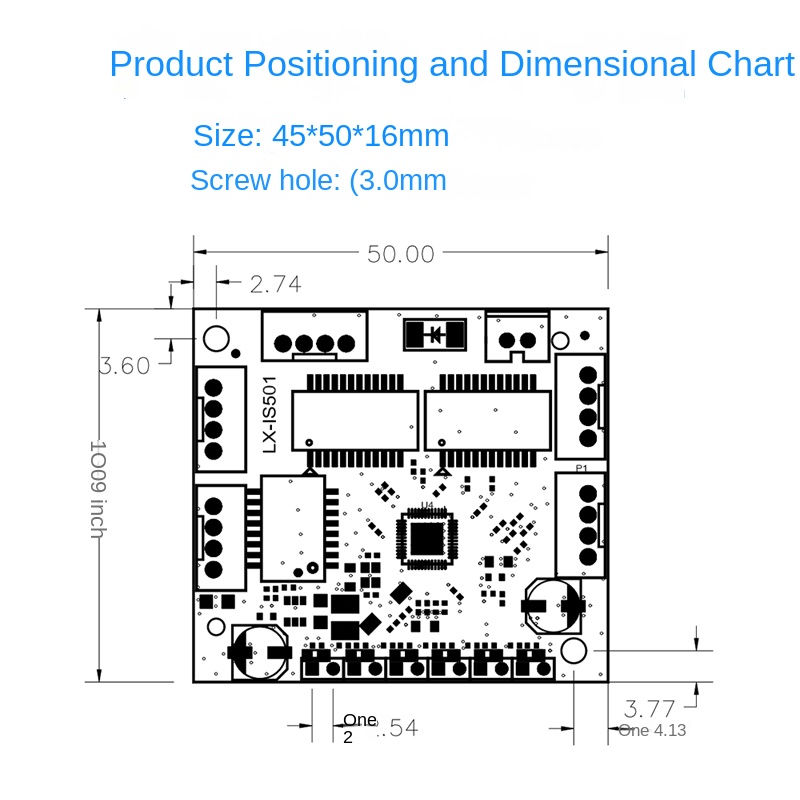

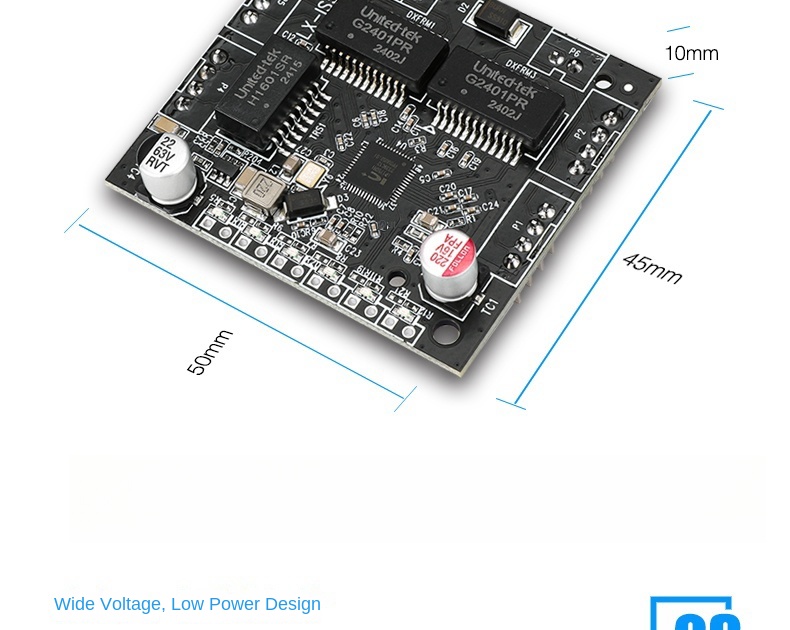

| Product Size (WxHxD) | 50*45*10mm |
| Application Power | Voltage input: DC5-60V Input mode: pin type 2p terminal block, spacing 2.54mm |
Product description

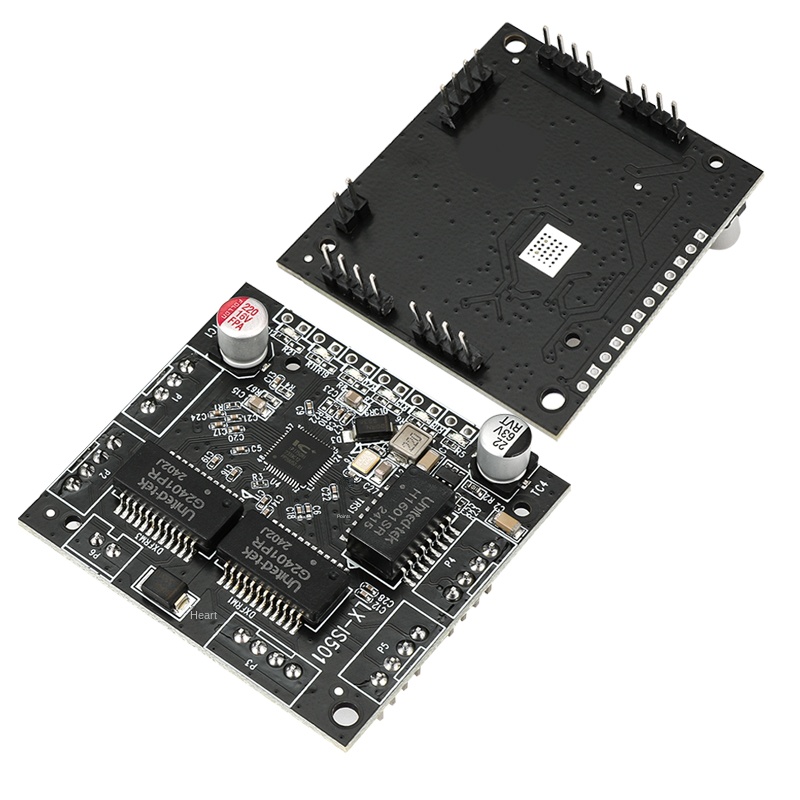

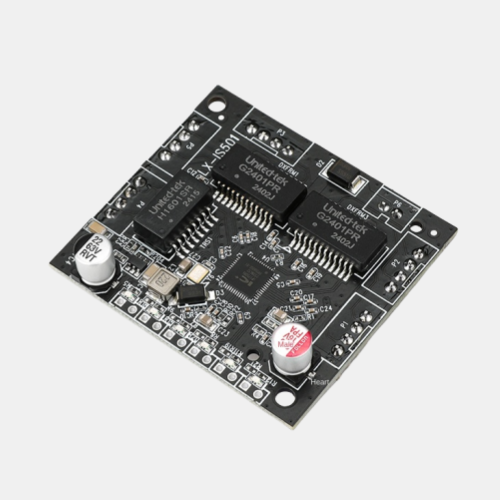

LX-IS501-2 is a compact 5-port industrial Ethernet switch module, built for embedded applications where space, stability, and cost matter. Whether you’re wiring up smart home systems, powering LED display networks, or expanding Ethernet ports inside industrial controllers, this module gets the job done—no config, no fuss.
It supports 10/100Mbps auto-negotiation, auto MDI/MDIX, and works right out of the box. With a wide DC input range (5–60V), ultra-low power consumption, and reliable performance across harsh environments (-40°C to 85°C), it’s an ideal pick for OEMs and engineers looking for an easy drop-in solution.
Key Features

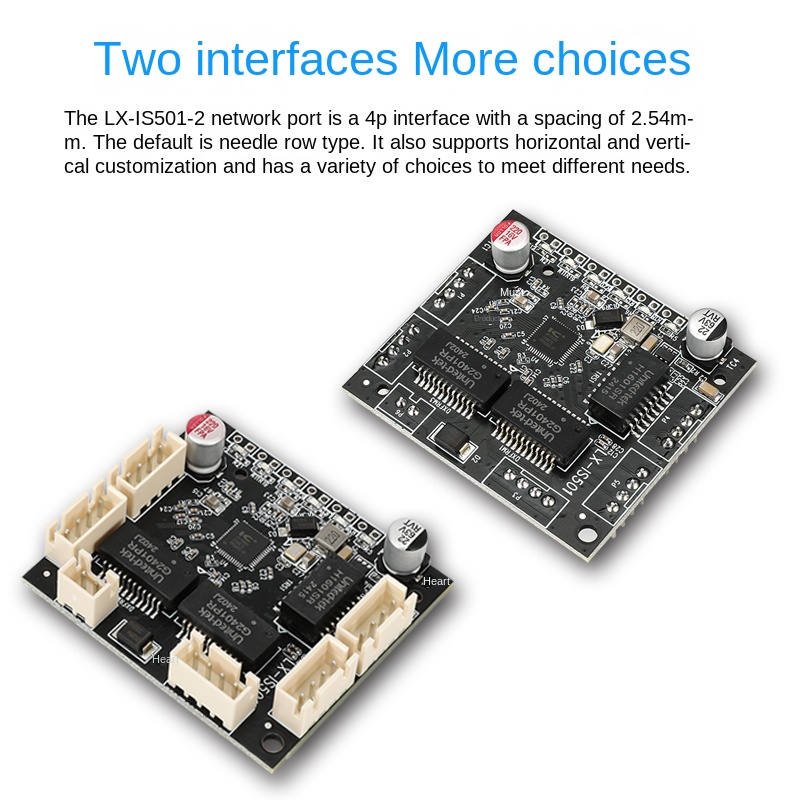

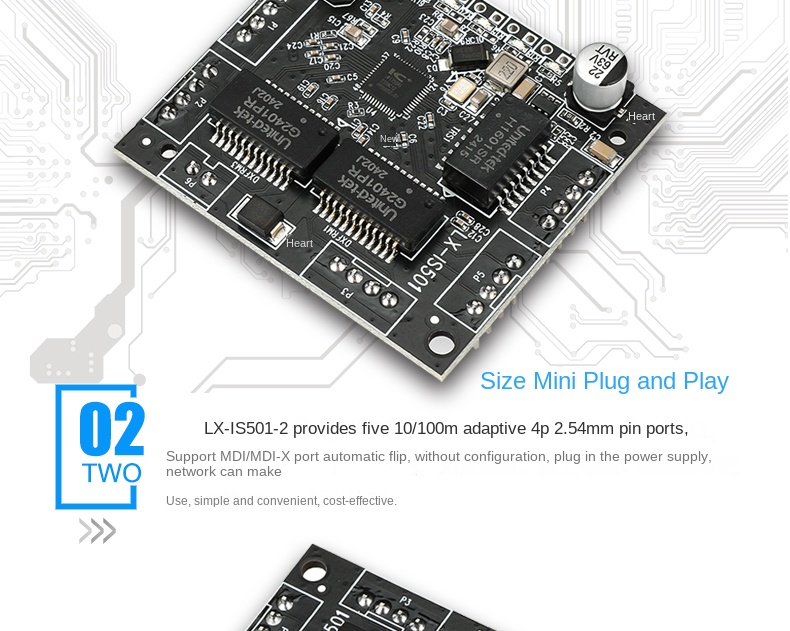

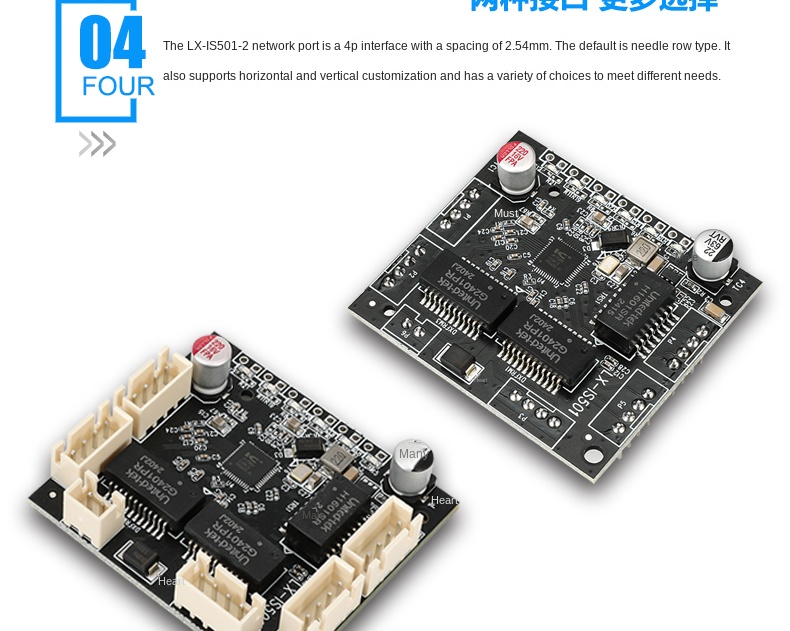

5 × 10/100Mbps Ethernet ports (2.54mm pitch pin headers)
All ports support UP-LINK—no dedicated uplink port needed
Auto MDI/MDIX, plug-and-play, no software configuration required

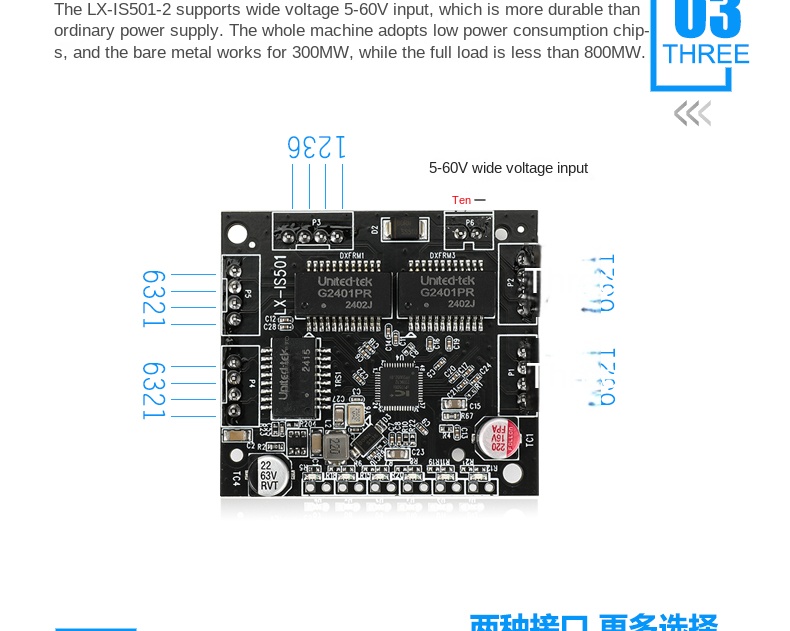

Wide voltage input: DC 5V–60V
Industrial temperature range: -40°C ~ 85°C
Low power draw: 300mW unloaded, 800mW max (@12VDC)
Backplane bandwidth: 1 Gbps
Power and data LEDs for real-time diagnostics
Ultra-compact: 50 × 45 × 10 mm
Pin-type 2P terminal block power input

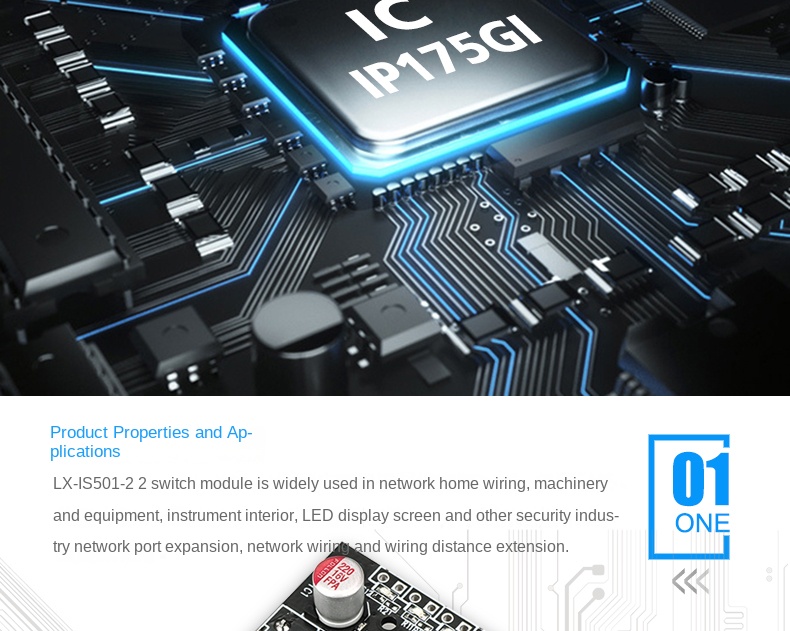

Where It Fits
This module isn’t just for lab testing—it’s designed for real-world embedded deployments:
Home automation control panels
LED display systems and signage
Access control & surveillance wiring
Industrial instruments or PLC communication expansion
Smart devices need extra LAN ports in a small footprint
Product Details:
