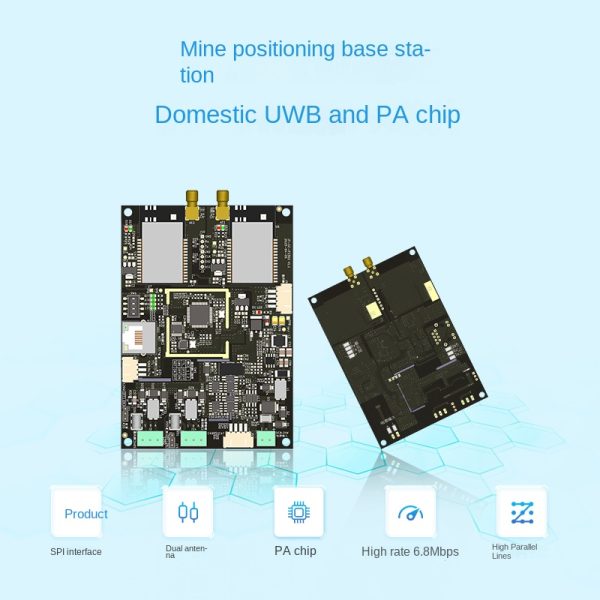

This UWB positioning system utilizes a domestic DW1000-based positioning board with UART and RJ45 interfaces, specifically designed for high-precision, interference-free equipment tracking in tunnel excavation and underground construction sites. It ensures accurate positioning even in dusty, obstructed, and complex environments. Real-time data transmission via Ethernet enables centralized monitoring and efficient operational control. The system also features a boundary-crossing alarm that immediately notifies operators when equipment moves beyond preset safety zones, enhancing safety and preventing equipment loss.

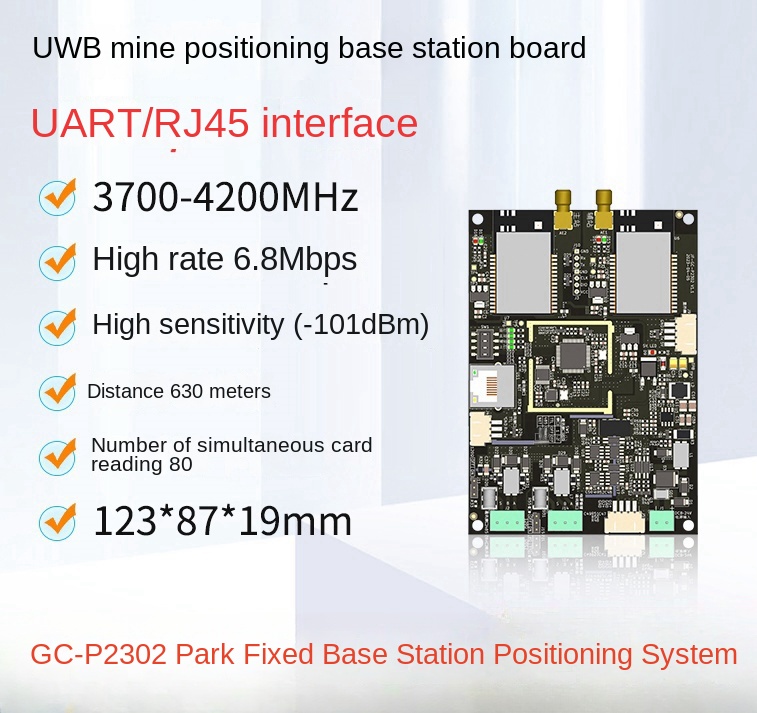

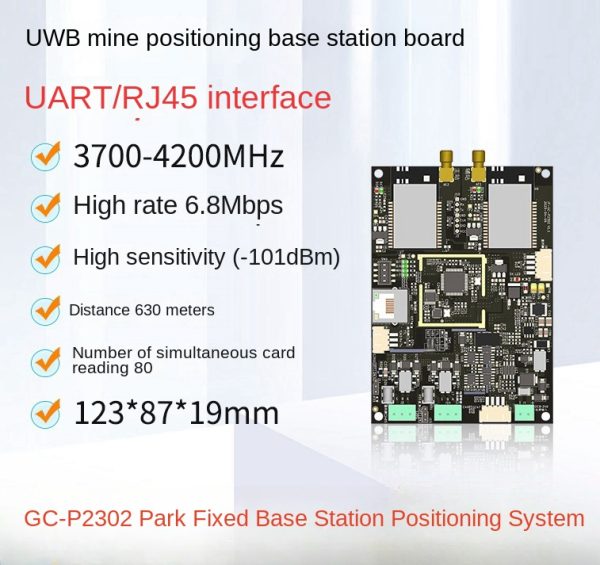

Key Features

Operating Frequency: 3700–4200 MHz

High Data Rate: Up to 6.8 Mbps for fast, reliable communication

High Sensitivity: -101 dBm for accurate detection in harsh environments

Long-Range Coverage: Supports positioning up to 630 meters

High Capacity: Simultaneously tracks up to 80 devices (card readers)

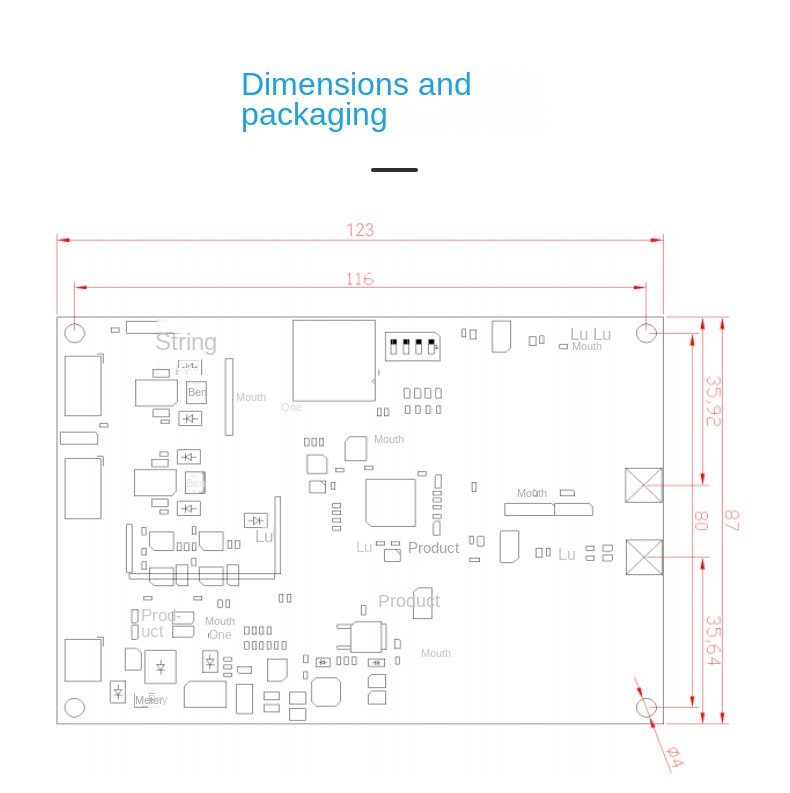

Compact Design: 123 × 87 × 19 mm, suitable for space-constrained setups

Interfaces: UART and RJ45 for flexible integration with industrial systems

Typical Applications

Tunnel Excavation: Real-time tracking of heavy machinery and equipment in underground construction

Mining Operations: Equipment and personnel positioning in high-interference environments

Underground Warehouses: Asset management and safety monitoring

Industrial Safety Zones: Automated boundary alarms for restricted areas

Hazardous Worksites: Live monitoring to prevent equipment loss and improve emergency response

Product Details
