product
LX-SG505

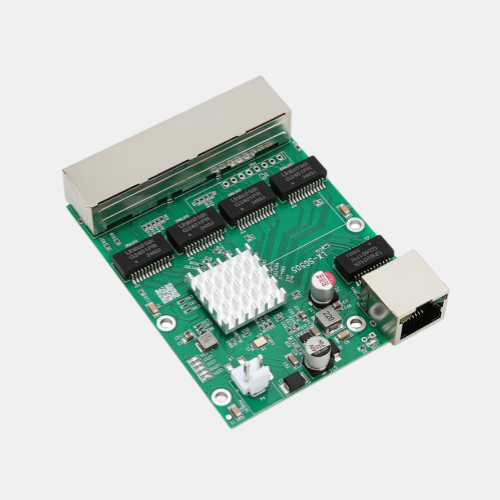

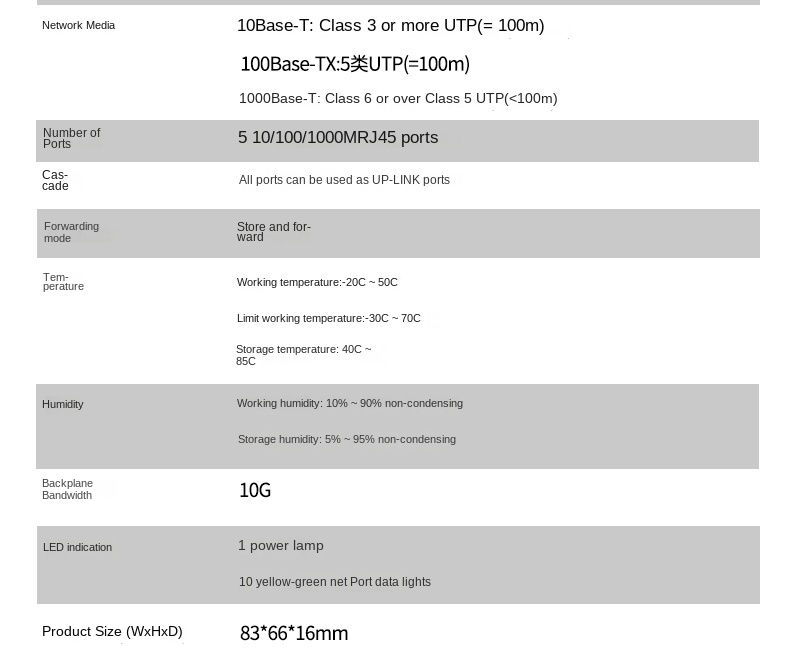

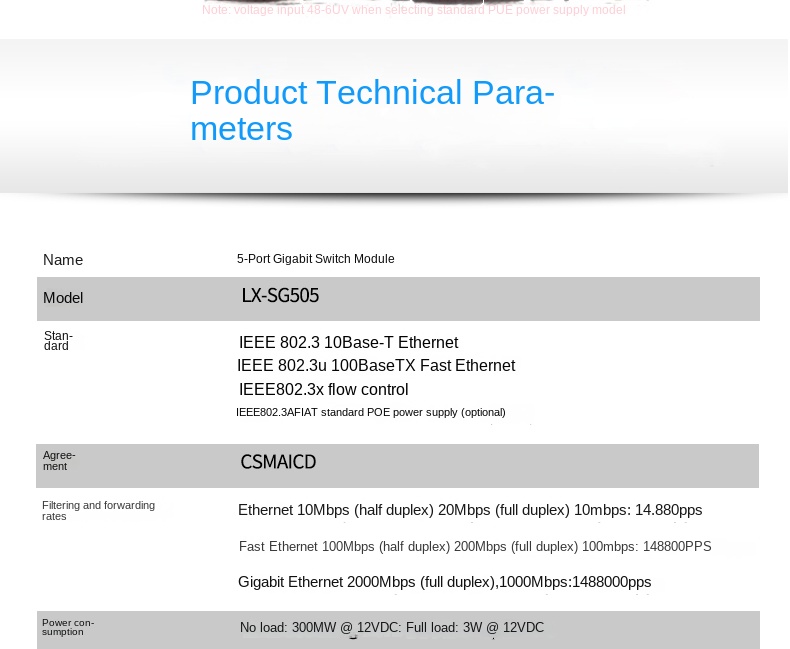

| Name | 5-Port industrial grade switch module |
| Model | LX-SG505 |

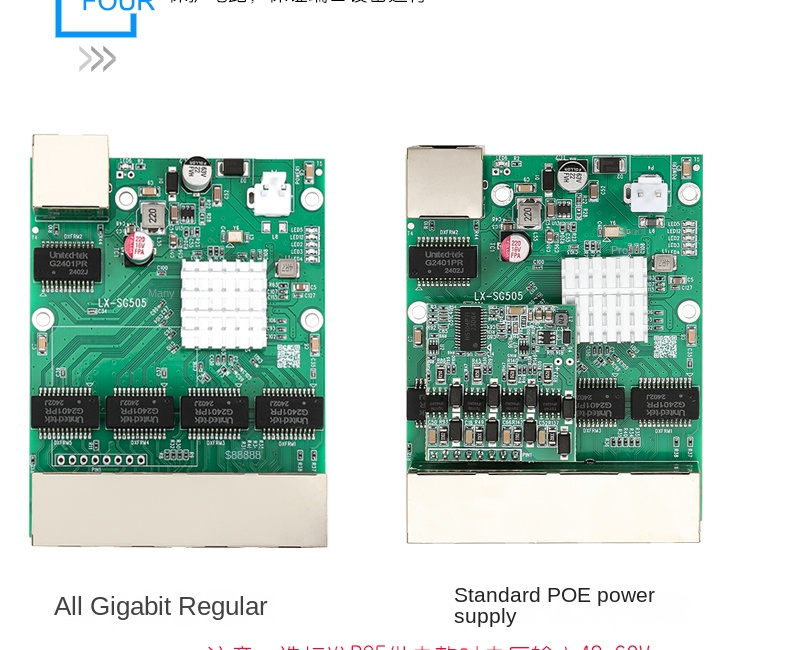

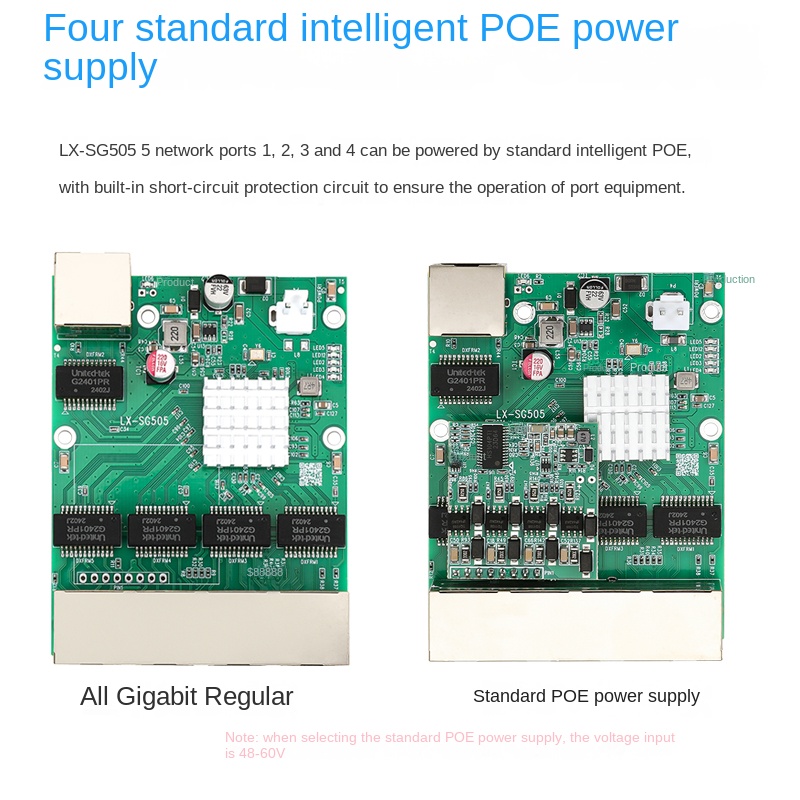

| Standard | IEEE 802.3 10Base-T EthernetEEE 802.3u100BaseTXFast Ethernet IEEE802.3x flow control IEEE802.3AF|AT standard POE power supply (optional) |
| Agree ment | CSMAICD |
| Filtering and forwarding rates | Ethernet 10Mbps (half duplex)20Mbps (full duplex)10mbps: 14.880pps Fast Ethernet 100Mbps (half duplex)200Mbps (full duplex)100mbps: 148800PPS Gigabit Ethernet 2000Mbps (full duplex),1000Mbps:1488000pps |
| Power Consumption | No load: 300MW @ 12VDC: Full load: 3W @ 12VDC |
| Network Media | 10Base-T: Class 3 or more UTP(=100m)100Base-TX:5类UTP(=100m) 1000Base-T:Class 6 or over Class 5 UTP(<100m) |
| Number of Ports | 5 10/100/1000MRJ45 ports |
| Cascade | All ports can be used as UP-LINK ports |
| Forwarding mode | Store and forward |
| Temperature | Working temperature:-20C~50CLimit working temperature:-30C~70C Storage temperature:40C85C |
| Humidity | Working humidity:10%~90%6 non-condensing Storage humidity:5%~95% non-condensing |
| BackplaneBandwwidth | 10G |
| LED indication | 1 power lamp 10 yellow-green net Port data lights |
| Product Size (WxHxD) | 50*45*10mm |
Product description
Product Introduction：

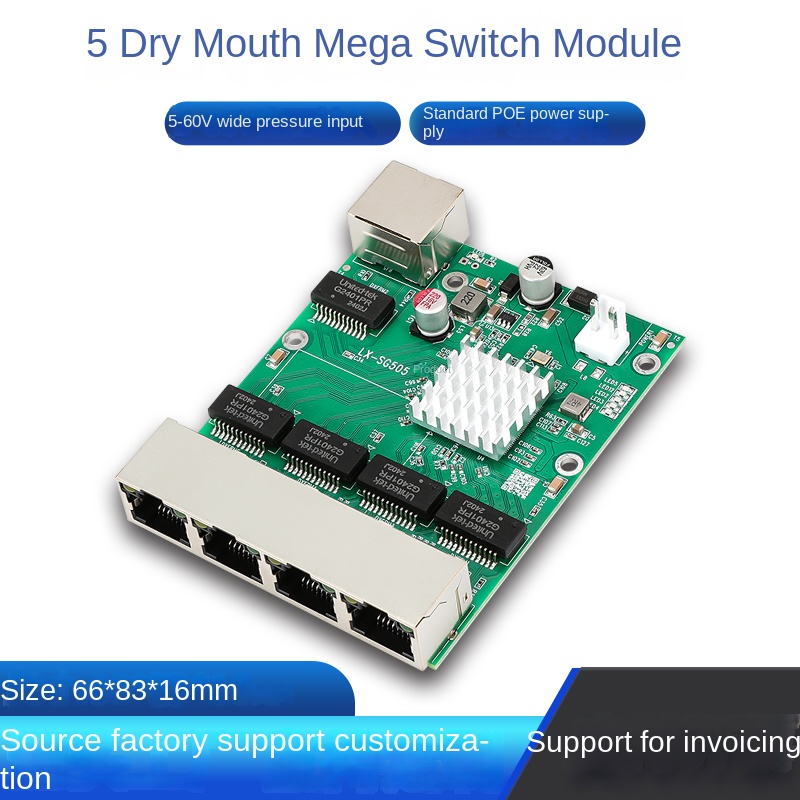

LX-SG505 is a compact 5-port Gigabit Ethernet switch module built for embedded and industrial-grade applications. Whether you’re expanding network ports in embedded devices, smart home wiring, or security systems, this module delivers stable performance and gigabit speed in a small footprint.

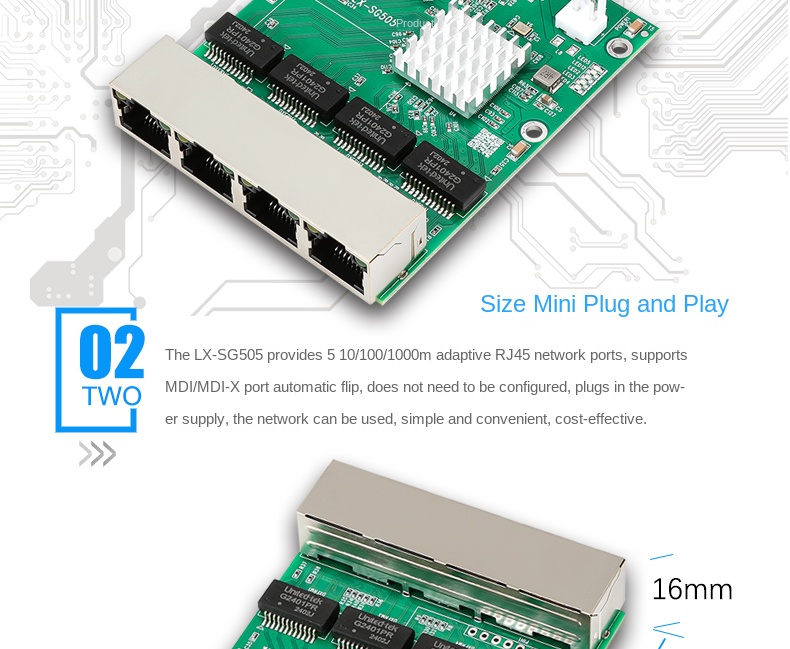

All five RJ45 ports support 10/100/1000 Mbps adaptive networking and auto MDI/MDI-X, so there’s no need to worry about cable types. It’s plug-and-play, doesn’t require software configuration, and operates reliably under a wide voltage range and moderate industrial temperatures.
Key Features
5 × RJ45 Gigabit Ethernet ports (10/100/1000 Mbps auto-negotiation)
All ports support uplink function—no fixed WAN port
Auto MDI/MDI-X for flexible cable usage
Plug-and-play setup, no configuration required
Backplane bandwidth: 10 Gbps
Power consumption: 300 mW (idle), up to 3 W (full load @12VDC)

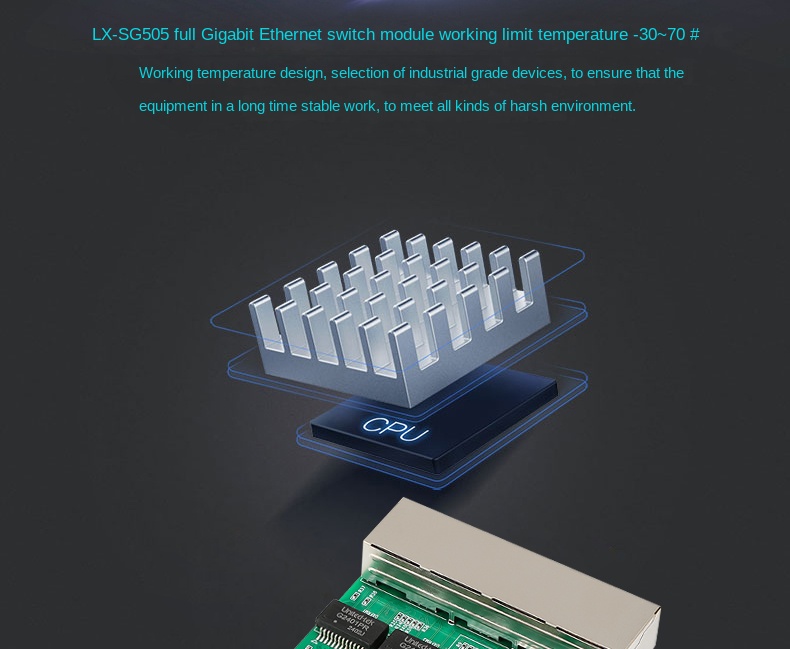

Operating temperature: -20°C ~ 50°C
Extreme operating tolerance: -30°C ~ 70°C
Storage temperature: -40°C ~ 85°C

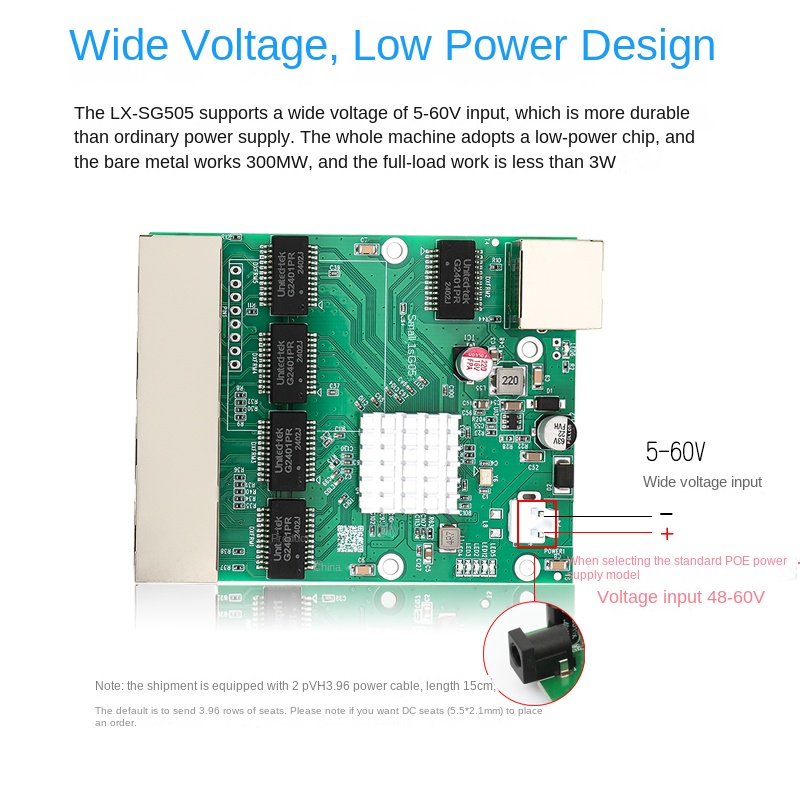

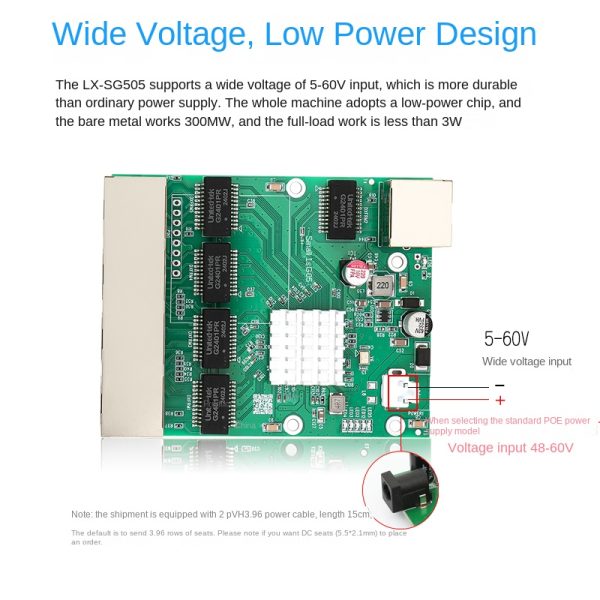

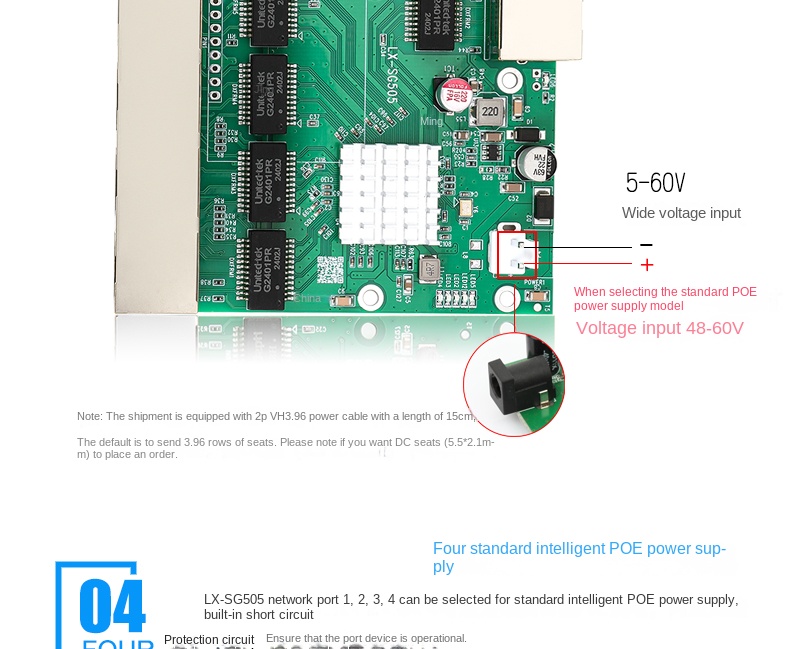

Input voltage: DC 5~60V / 1A
Pin-type 2P terminal block power input
LED indicators for power and data activity

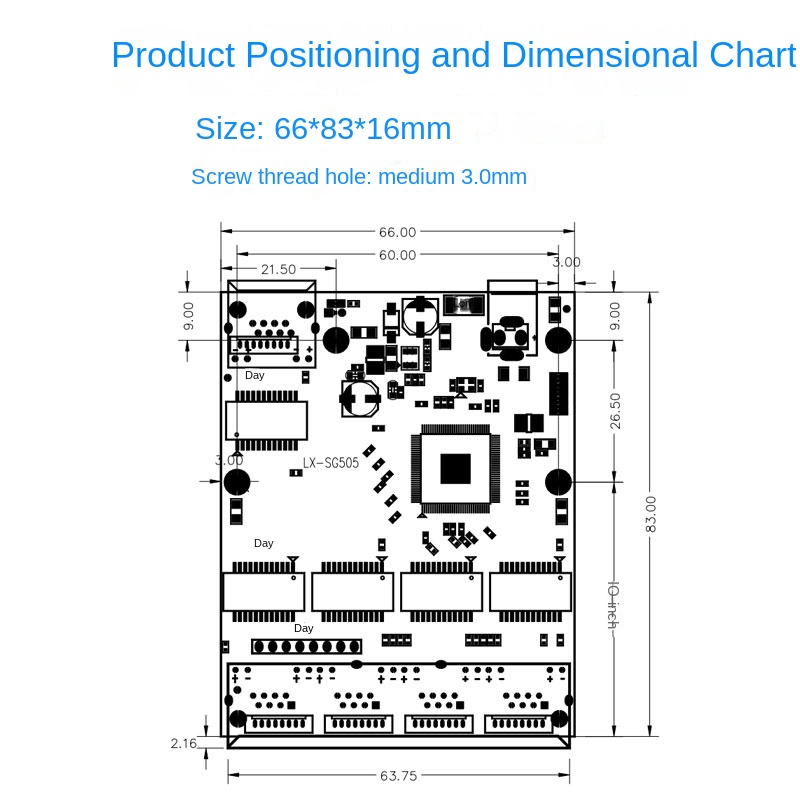

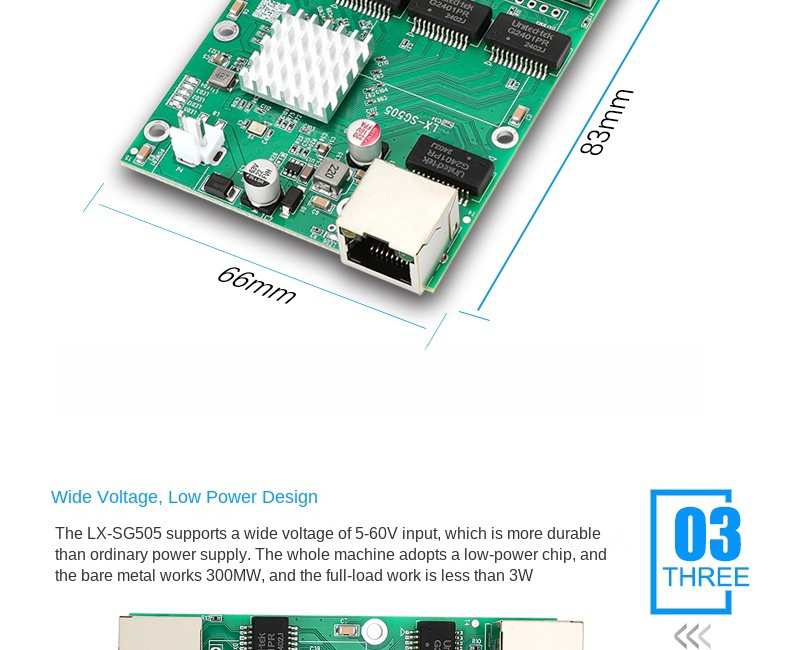

Compact size: 83 × 66 × 16 mm
Application Scenarios

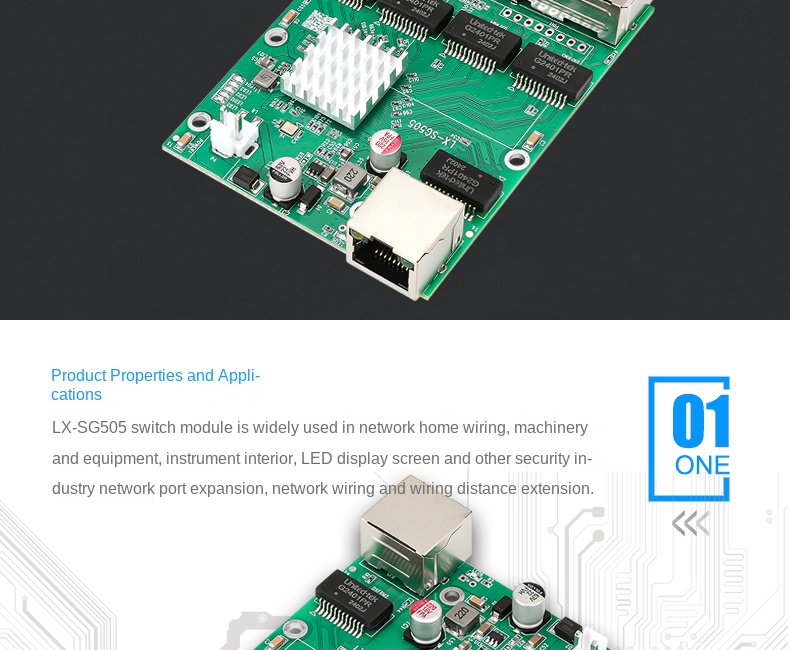

LX-SG505 is suited for scenarios that require compact, high-speed, and reliable Ethernet switching:
Embedded controllers and smart terminals
Surveillance systems and access control networking
LED screen communication control
High-speed network extension for industrial equipment
Panel-mounted or DIN rail systems with space constraints
Product Details:
Related Products
Related products are complementary or similar items that enhance functionality, meet specific needs, or expand applications in a product range.
