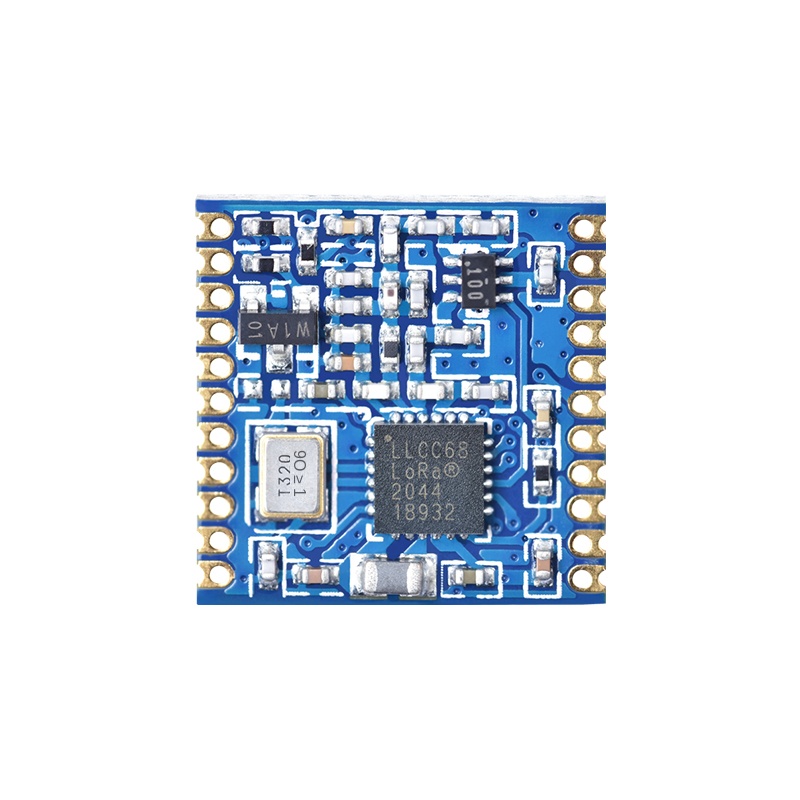

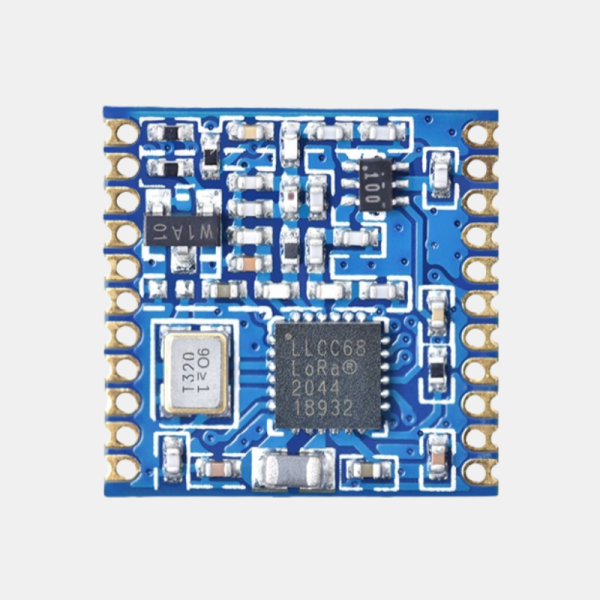

The LLCC68ZTR8 is a compact, low-power LoRa 868 MHz wireless RF module based on the LLCC68 chip. Supporting SPI communication, it integrates easily with microcontrollers and enables long-range, low-power wireless transmission. Ideal for IoT, IIoT, and Smart City applications, the LLCC68ZTR8 delivers reliable performance and efficient connectivity in diverse deployment scenarios.

Product features

1.868MHz for EU LoRaWAN
2. SPI interface
3. Max output power 22 dBm
4. TX current 120mA
5. RX current 5mA
6. Sleep current 1uA
7. Long-range capable
8 . Compact size 15×15mm

Industry application

Smart Home: LoRa enables remote control of locks, lights, curtains, and more.
Smart Security: Supports wireless smoke alarms, sensors, and cameras for real-time alerts.
Smart Agriculture: Monitors soil moisture and temperature, boosting precision farming.
Industrial IoT: Tracks equipment status and improves efficiency through remote monitoring.
Asset Tracking: Manages logistics and warehousing with real-time location tracking.
Smart City: Powers air quality, noise monitoring, and intelligent parking solutions.

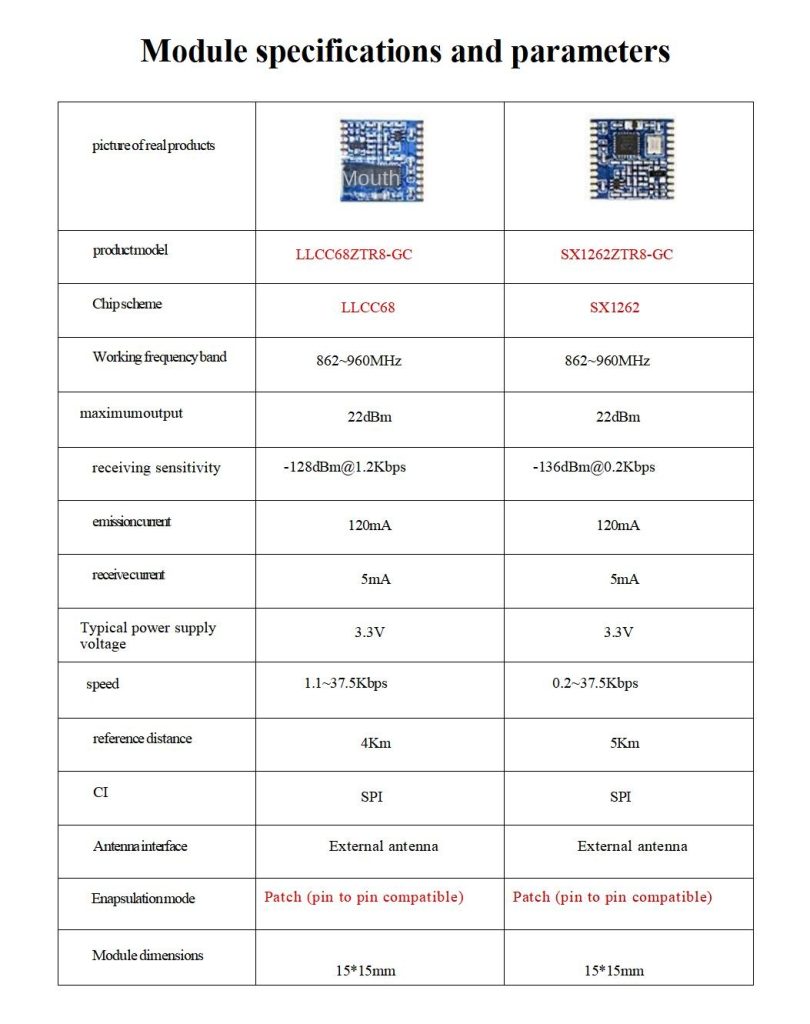

Product Details：
