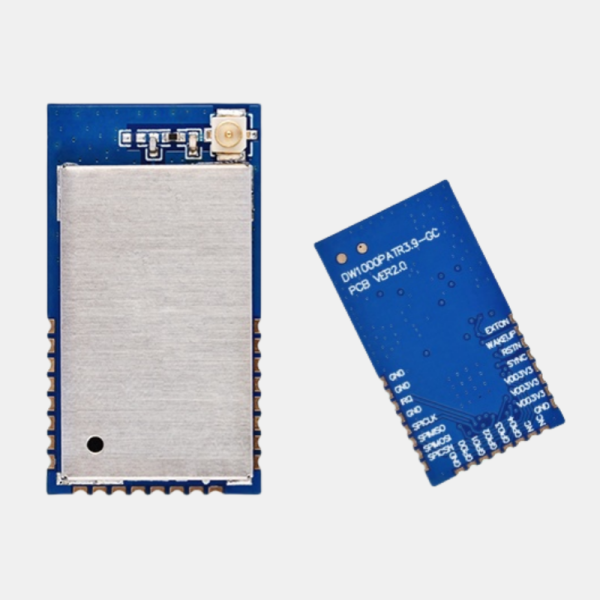

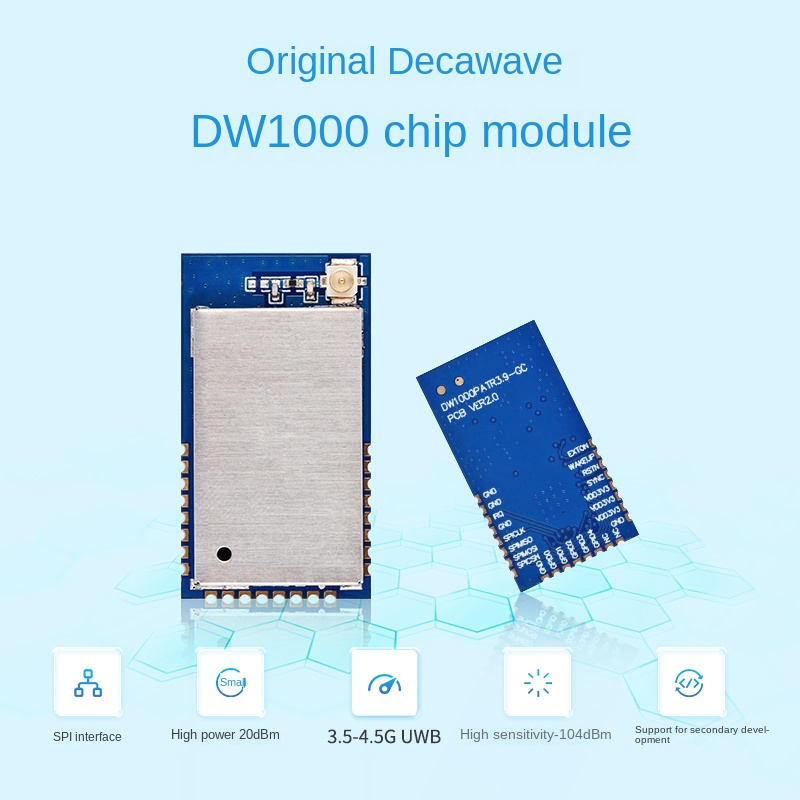

UWB ranging and positioning module DW1000PA+LNA
| Model | DW1000PA/LNA |
| Brand | OTOMO |
| Origin | Mainland China |
| Antenna type | External |
| Applicable scenarios | Wireless positioning and ranging applications |
| Packaging method | Patch |

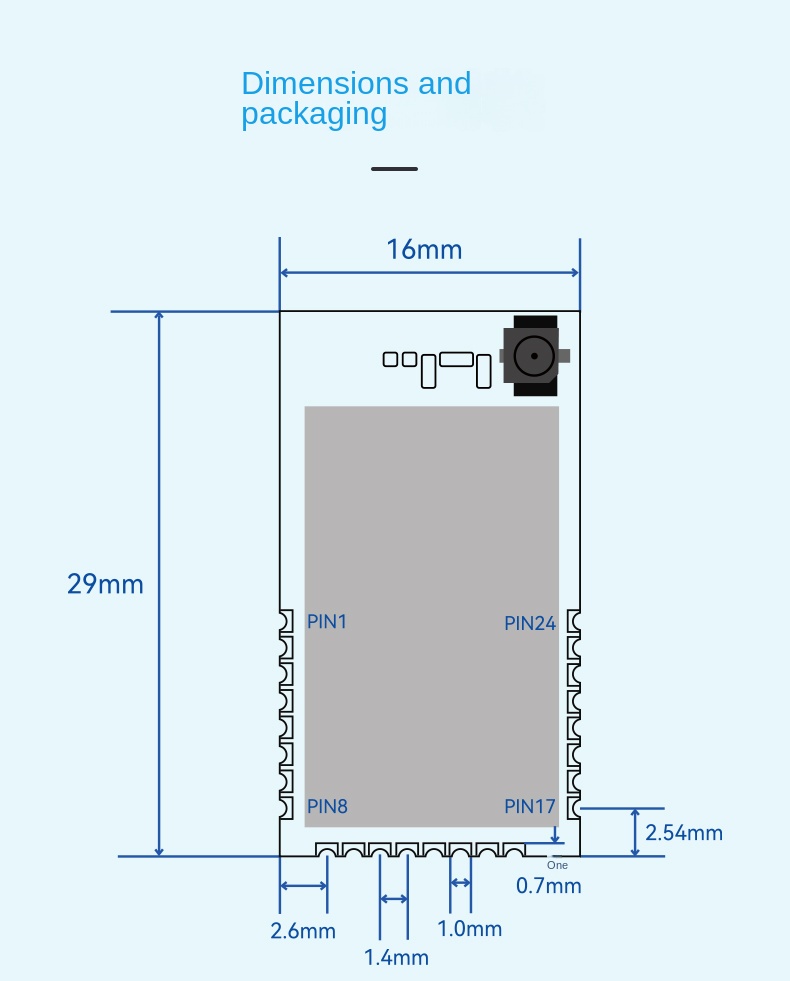

| Size | 28x16x3mm |
| Operating frequency | 3900MHz |
| Operating voltage | 3.3V |
| Communication method | SPI |
Product description

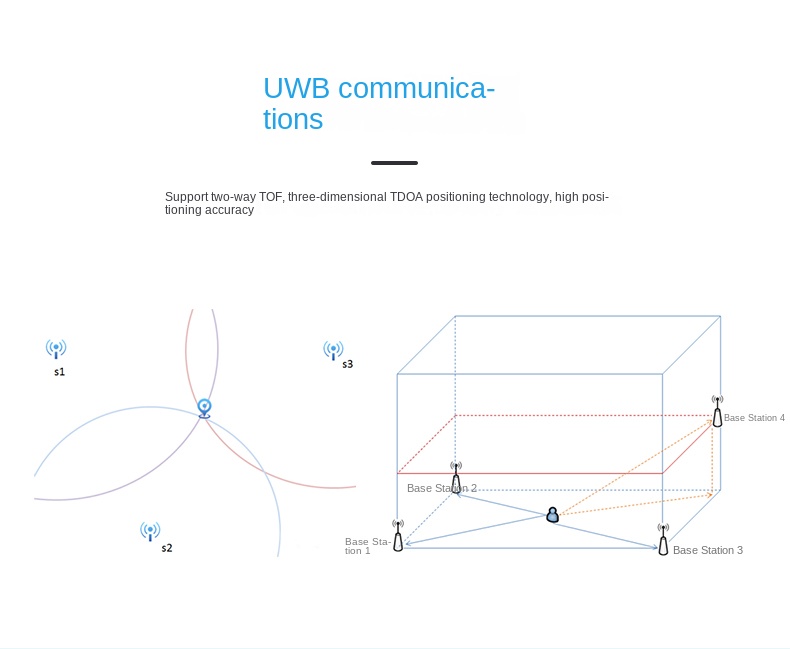

The UWB ranging and positioning module with DW1000PA+LNA provides centimeter-level accuracy for tracking coal mine personnel. DW1000PA ensures precise distance measurement, while LNA boosts signal strength and stability in harsh environments. This solution improves real-time monitoring, enhances emergency response, and strengthens safety and efficiency in coal mine operations.
Product features
1.3.5-4.5G
2. SPI interface
3. High sensitivity (-104 dBm)
4. Maximum power 20 dBm
5 . Distance 300 meters
6.29*16mm

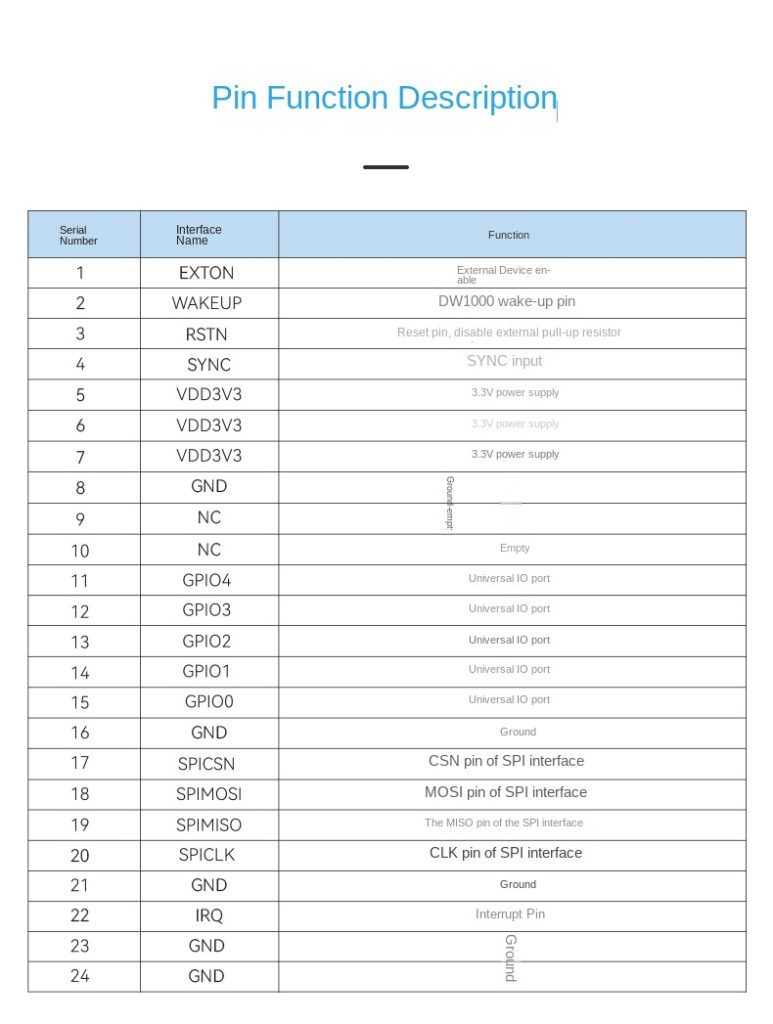

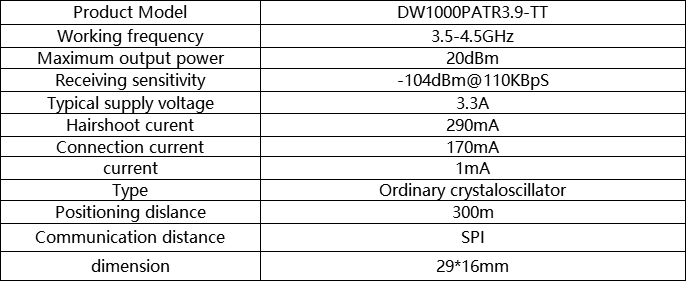

Product Parameters
Product Details：
