The Zigbee Module is one of the most versatile tools for wireless communication between smart devices. Designed for low-power, low-data-rate applications, it’s widely used in home automation, industrial controls, and medical monitoring systems. Because of its mesh network capabilities, it enables devices to communicate reliably, even in areas with weak signals.

Zigbee’s popularity stems from its open standards and strong community support. That means it’s easier to troubleshoot and find guidance online. Before integrating it with Raspberry Pi, it’s essential to understand what the module does. It is a communication bridge between the Raspberry Pi and other Zigbee-enabled devices. Whether you’re building an intelligent lighting system or a remote temperature monitor, the Zigbee Module ensures reliable connectivity across all nodes.

Choosing the Right Zigbee Module Hardware for Your Setup

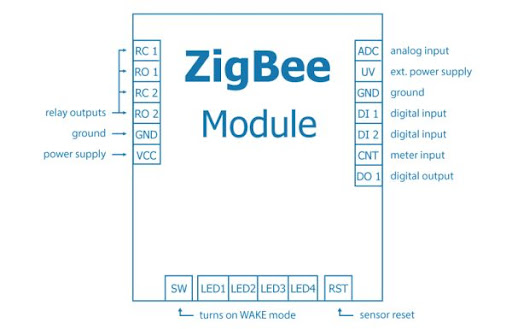

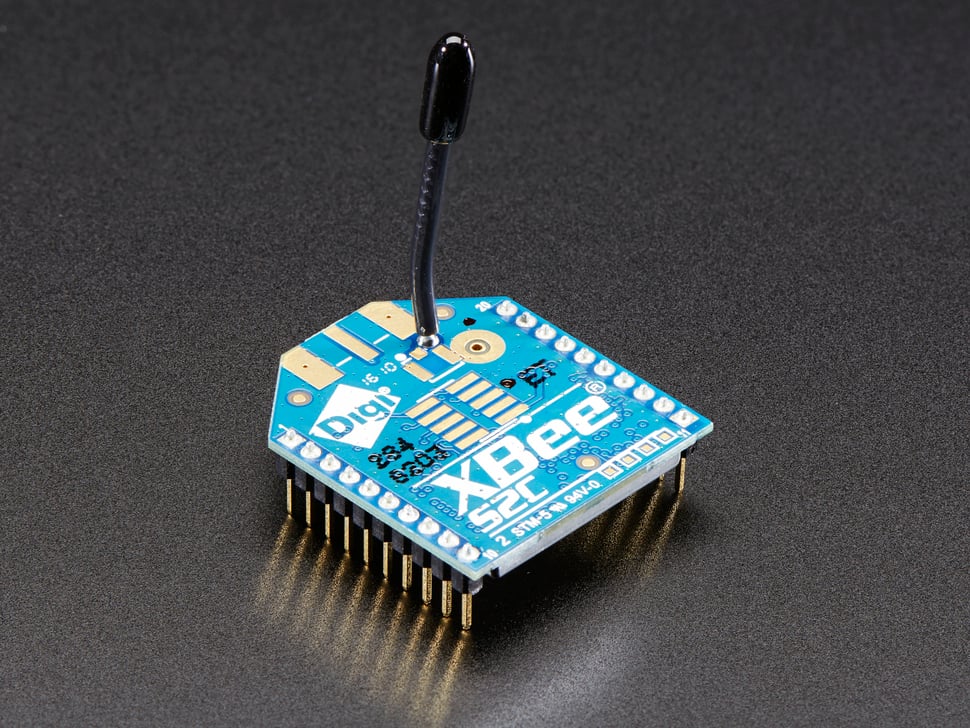

Before diving into wiring and coding, you must select the correct components. For starters, not all Zigbee modules are compatible with Raspberry Pi out of the box. The Xbee Series 2c, Digi Xbee3, or CC2530-based modules are among the most compatible. Also, make sure to get a USB adapter or a breakout board, depending on your module’s interface.

Additionally, check your Raspberry Pi model. While most modern boards, such as the Raspberry Pi 3 B+ and newer, have built-in wireless capabilities, older models may require USB Wi-Fi dongles to handle internet-based data. Once your hardware is ready, confirm the baud rate and voltage compatibility of your Zigbee module. Mismatches in power or communication speeds can cause erratic behaviour or prevent a connection.

Connecting the Zigbee Module to the Raspberry Pi

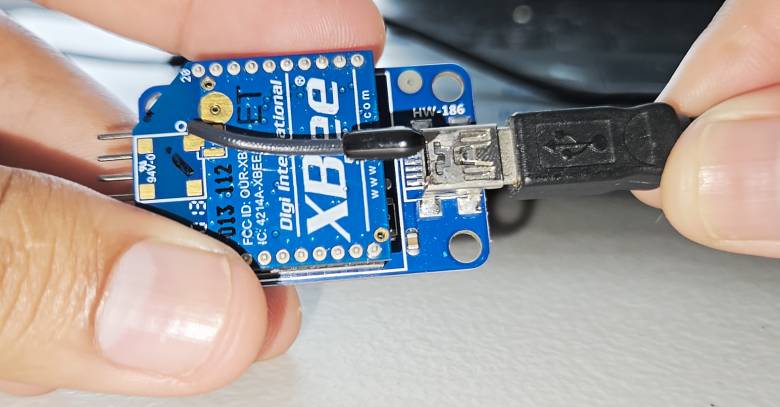

The physical connection between the Zigbee module and the Raspberry Pi is simple, but it requires attention to detail. If needed, insert the module into a USB adapter and then plug it into the Pi. You’ll need to connect the Tx, Rx, GND, and VCC pins directly to the Pi’s GPIO headers for modules without USB interfaces. Use jumper wires to make the connections.

Pay close attention to voltage levels. Zigbee modules typically work at 3.3v, which is safe for the Pi, but always double-check. Miswiring the pins could damage both components. Once the module is physically connected, power up the Raspberry Pi. You should now be ready to configure the serial port to begin communication.

Installing and Setting Up Required Software

Once your hardware is connected, you must install the software. Start with enabling the UART interface on your Raspberry Pi. Use raspi-config to turn off the serial console and enable the serial hardware port. Then, install libraries like PySerial, Digi Xbee, or Zigpy based on your module type.

Use the terminal to run the appropriate Python scripts for your module. For instance, Digi modules can be managed using the Digi-Xbee Python library, allowing simple interaction through a few lines of code. After installation, test the connection by sending and receiving simple packets. This confirms whether the Raspberry Pi is correctly communicating with the Zigbee module.

Configuring Your Zigbee Network

Zigbee networks are structured in a hierarchy of a coordinator, a router, and end devices. The Raspberry Pi usually acts as the coordinator. Use your chosen software library to assign roles to each node. Digi XCTU provides a graphical user interface (GUI) for network visualisation and configuration.

Create a network ID and set encryption parameters for security. Assign unique PAN IDS and ensure all devices are on the same channel. Configure data rate and power levels for optimal performance. These settings determine how well the network handles data traffic, especially in larger setups. Once configured, start testing by sending data between nodes.

Writing and Testing Python Scripts

Coding with Zigbee on Raspberry Pi is straightforward if you’re familiar with Python. Start by importing the necessary libraries. Define serial ports, configure baud rates, and assign device roles. Scripts should include error handling to avoid crashing during transmission failures.

After writing the code, test each function separately. For example, create a script to send a “Hello” message and another to receive and print it. Once verified, expand the script to include sensors or actuators. Integrating temperature sensors or light switches can help you create a fully functional and innovative system.

Troubleshooting Common Integration Issues

Integration isn’t always smooth. One common issue is the failure to establish a serial connection. This can be due to incorrect port configuration or missing drivers. Use ‘dmesg’ and ‘lsusb’ to verify that the module is recognised.

Another issue is packet loss, often caused by incorrect baud rates or interference. Always test your network in different conditions to identify potential weak points. Shielding and proper antenna orientation can significantly improve reliability. Log data regularly and use analytics to monitor the health of your network.

Building Smart Systems with Zigbee Module and Raspberry Pi

Integrating a Zigbee Module with a Raspberry Pi opens up endless possibilities for building intelligent systems. Whether for home automation, energy monitoring, or industrial applications, this combo offers scalability, reliability, and cost-efficiency. With the proper setup, you can easily create a mesh network that adapts and expands over time.

Once mastered, the integration process becomes second nature. The knowledge and skills gained will not only apply to Zigbee but also to broader Iot development. Embrace the learning curve, document your setup, and continuously experiment. Your thoughtful system journey starts with a single Zigbee Module and a curious mind.
