Product Introduction：

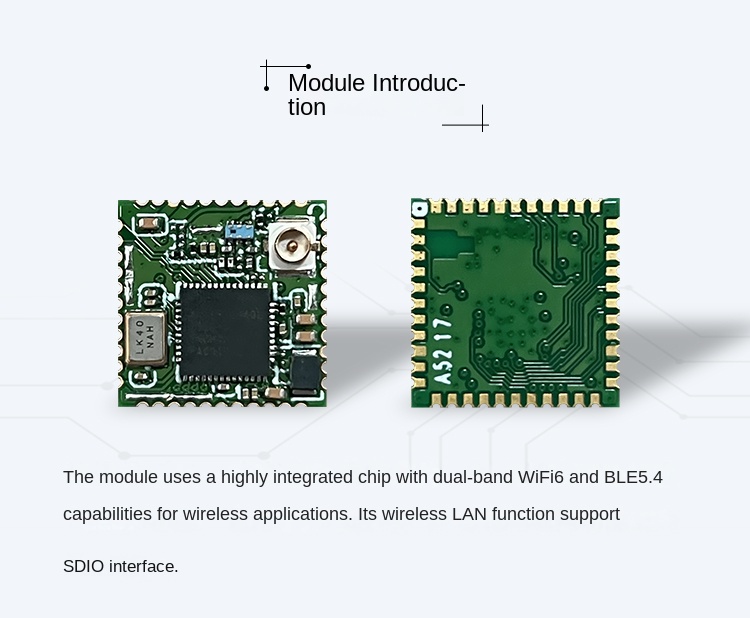

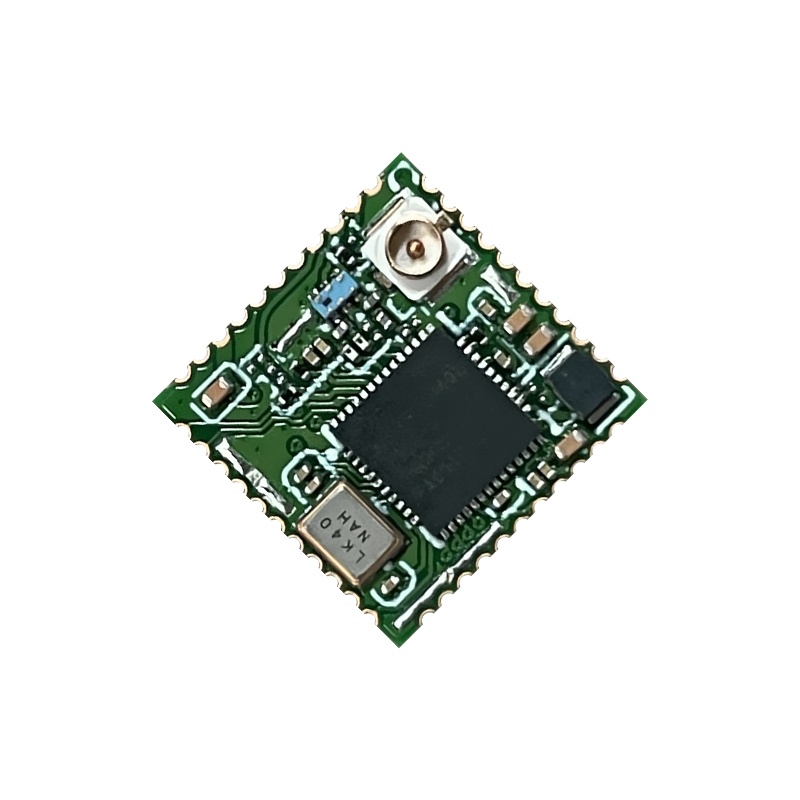

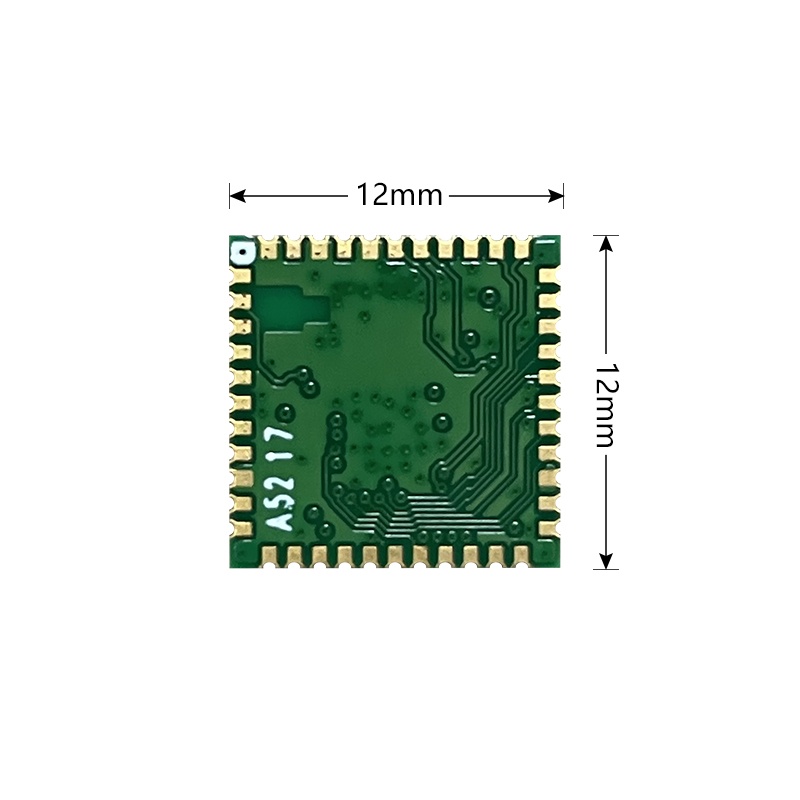

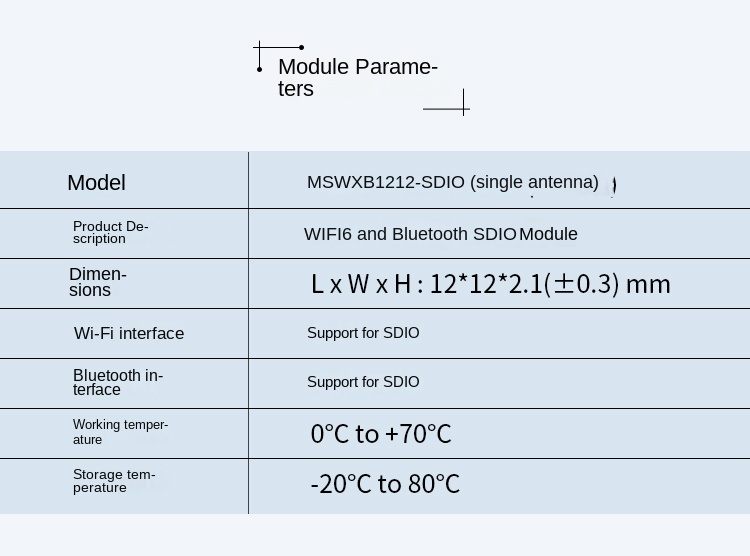

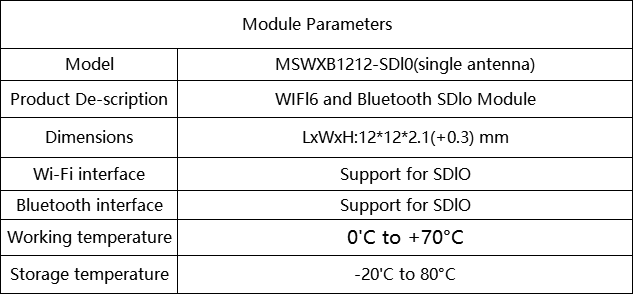

MSWXB1212-SDIO module is robust and highly integrated. It has dual-band WiFi6 and BLE5.4 functions, which are suitable for various wireless application scenarios. The size is 12122.1 (±0.3) mm, compact and portable. Its wireless LAN function is implemented through the SDIO interface, and Bluetooth also supports the SDIO interface. The operating temperature range is 0°C to + 70°C, and the storage temperature is – 20°C to 80°C, with good environmental adaptability. It can operate stably under both everyday use and storage conditions. It is a 2.4G/5G dual-band WiFi and BLE Bluetooth two-in-one module that combines small size, low power consumption, and high performance.

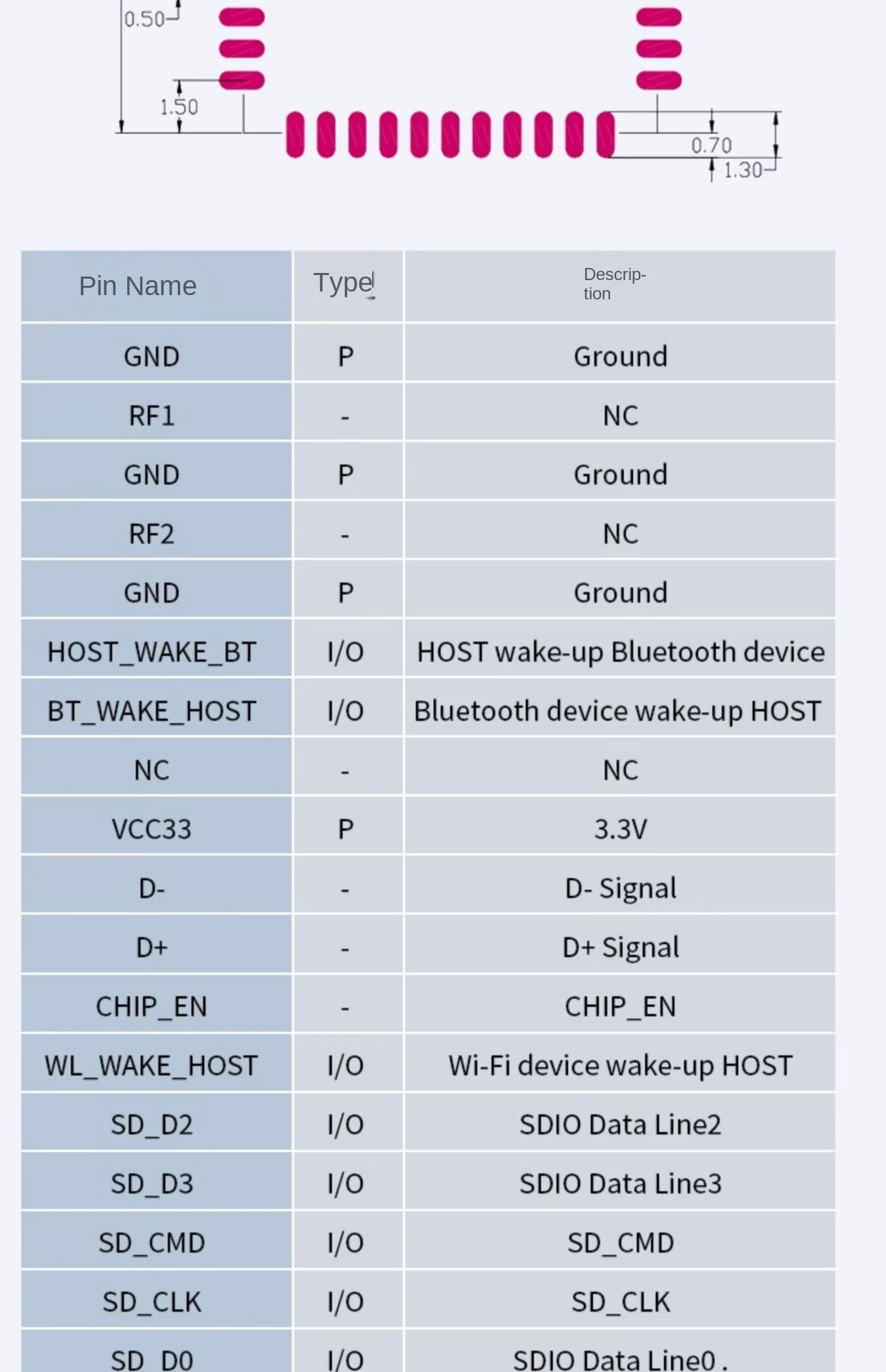

Product Details：
