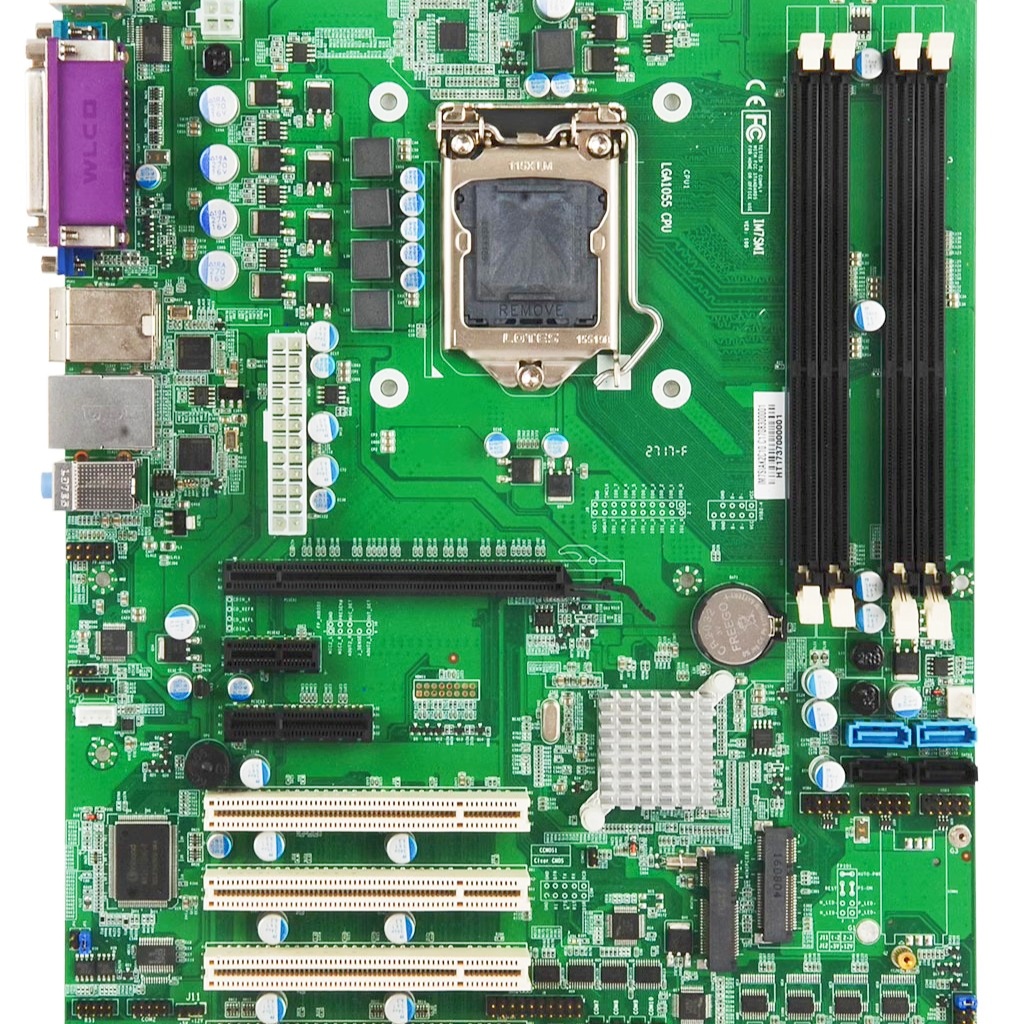

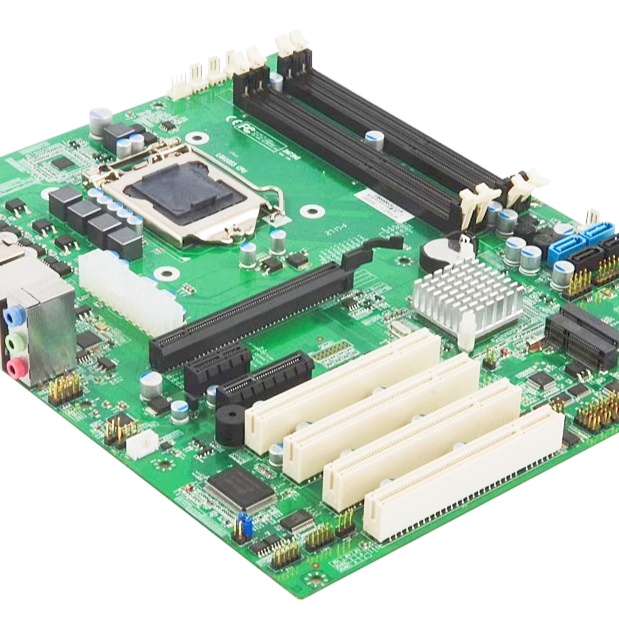

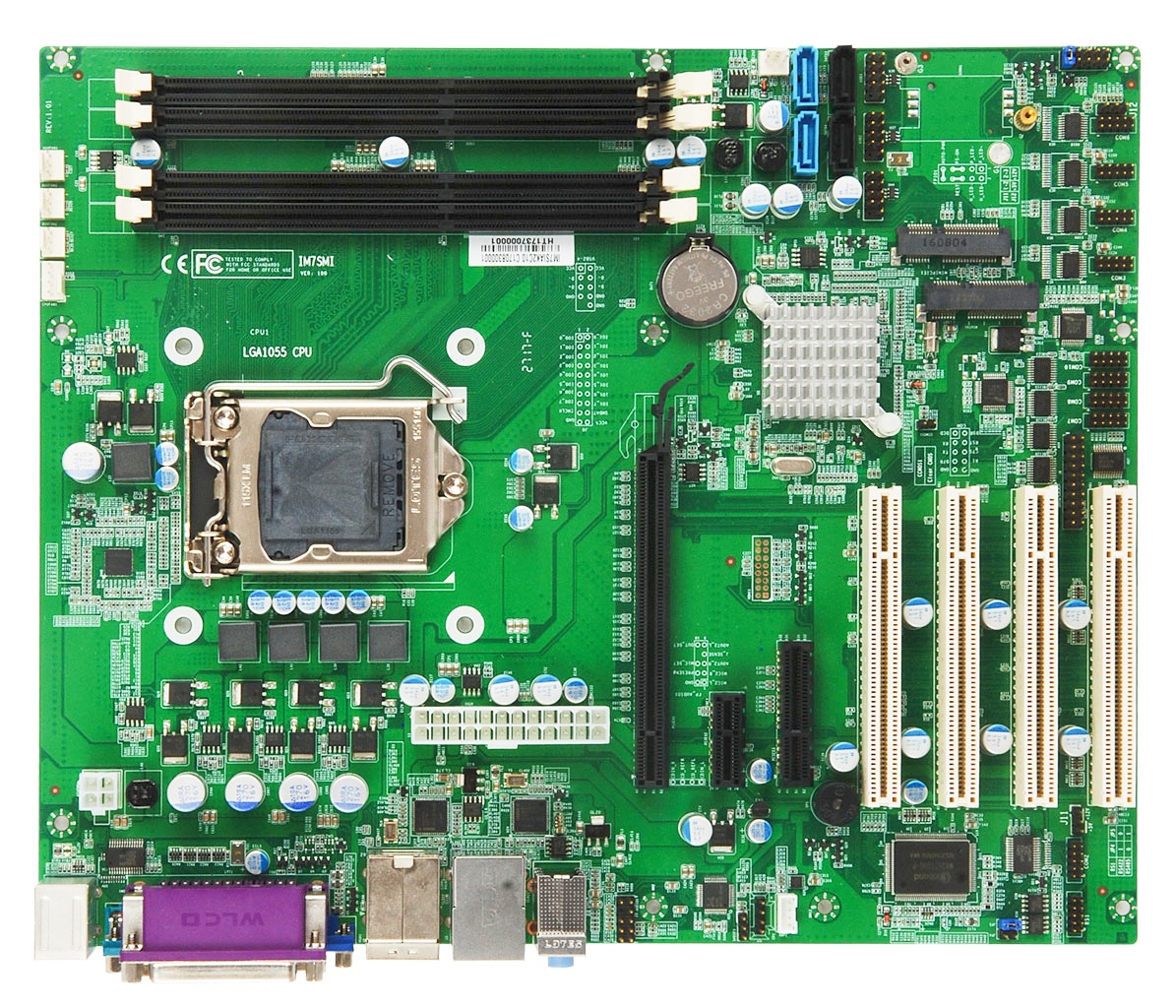

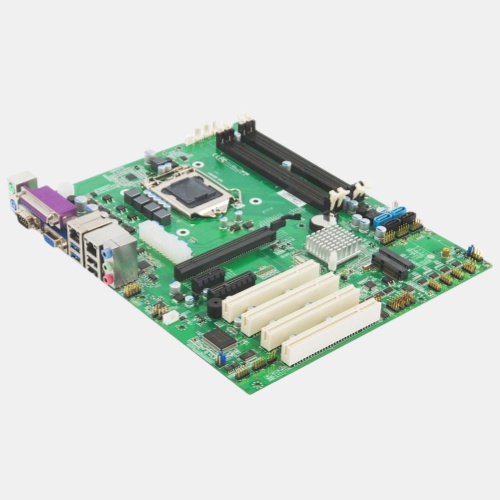

IM7SMIAK2C10
| Model | IM7SMIAK2C10 |
| Processor | Intel Socket1155, Support i3/15/i7/LGA1155 CPU |
| Chipset | IntelQ77/H77/B75 |
| Memory | 4 240-pin DDRll slots, single-challenge supports up to 8GB, memory can support up to 32GB. |
| Displayinterface | 1 VGA interface |
| Audio | Support 1*MIC-in,1*Line-in,1*Line-out |
| LAN | 2 Gigabit network cards (INTEL82583V) |
| Memory interface | 4 SATA interfaces, support RALD function |
| Serial port | 10 RS232 serial ports, ofwhich COM2 can support RS232/422/485,LPT 1 |
| USB | 8*USB2.0,2*USB3.0 |
| PS2 | 1 PS2 interface, supports PS2 KB/MS |
| Expansion bus | 4 PCl slots, 1 PClE 1X slot, 1 PClE 4X slot, 1 PClE X16 slot, 1 16-way digital l/0 |
| Interface | 1 Mini-pcie,1 SlM,1 Mini-pcie (MSATA+USB) |
| Watchdog | 255 levels, programmable seconds/minutes, timeout interrupt, or system reset |
| Power supply | Support ATX power management mode |
| Dimensions | 292mm x 241 mm |
| Working environment | -20~60C10~95%@40°℃(no condensation) |
| Storage environment | -20~70C10~95%@40°℃(no condensation) |
| OS | Support WinXP, Win7/8/10 |
Product description
Product Features
This industrial-grade motherboard is built on Intel Socket 1155 architecture, supporting a wide range of Intel i3, i5, and i7 processors. With compatibility for multiple Intel chipsets (Q77/H77/B75) and up to 32GB of DDR3 memory, it delivers reliable performance for multitasking and demanding applications. The board integrates diverse interfaces, including display, audio, networking, storage, and expansion options, making it highly adaptable for industrial control, networking, and embedded solutions. Additionally, it features a robust watchdog timer, ATX power management, and an extended operating temperature range, ensuring long-term stability in harsh industrial environments.
Key Benefits
-
Supports Intel i3/i5/i7 processors and multiple chipsets, covering a wide spectrum of industrial applications.
-
Equipped with four DDR3 slots, supporting up to 32GB for smooth multitasking and heavy workloads.
-
Dual Intel Gigabit Ethernet and RAID functionality deliver stable network connectivity and enhanced data protection.
-
Provides rich I/O options, including 10 serial ports, multiple USB ports, PCI, and PCIe slots for easy device integration.
-
A wide operating temperature range (-20°C to 60°C), programmable watchdog timer, and ATX power management ensure reliability under demanding conditions.
-
Compatible with mainstream operating systems (Windows XP, 7, 8, and 10) for flexible deployment.
Application Areas
Industrial automation, networking and communication, embedded systems, data acquisition and monitoring, transportation, and energy management.
