Product Features

1. Strong processor compatibility: supports Intel LGA 1150 4th generation i3/i5/i7 processors, which can meet the diverse performance requirements of different users.

2. Good memory expandability: With 2*DDR3 memory slots, the motherboard can support up to 16 memory modules, providing sufficient memory space for system operation and multitasking.

3. Rich display interface: The 1HDMI + 1VGA display interface supports synchronous or asynchronous display and can connect various display devices to meet different display needs.

4. Diverse storage devices: 2SATA3.0 and 1M.2 (SATA protocol) interfaces provide various storage device connection options, making it convenient for users to expand storage space.

5. Rich expansion slots: The card is equipped with 2PCI slots, 1PCIEx16 slot, and 1*pcie x4 slot, making it convenient for users to expand various hardware devices, such as graphics cards and sound cards.

6. Wide compatibility of operating systems: It supports multiple operating systems, such as Windows 7, Windows 10, LINUX, etc. Users can choose the appropriate operating system according to their needs and usage.

7. Stable power supply specifications: ATX24PIN + 4PIN power supply ensures a stable power supply for the motherboard and a stable system operation.

8. Strong temperature adaptability: The storage temperature range is – 20℃ – 70℃, and the operating temperature range is – 20℃ – 60℃. It can adapt to ambient temperatures and ensure everyday use in various environments.

9. Moderate size: The 232mm*195 mm size is easy to install in different chassis and is compatible.

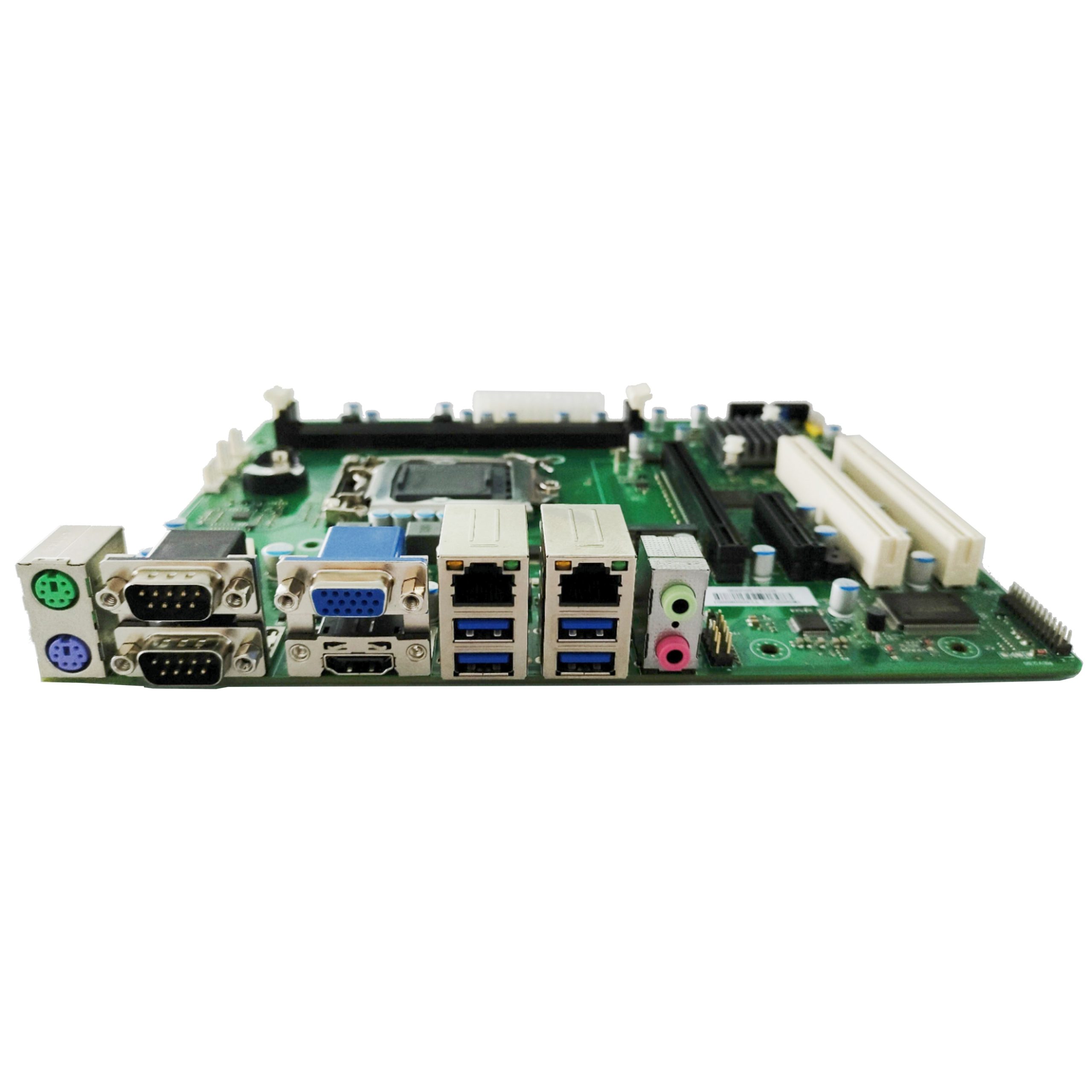

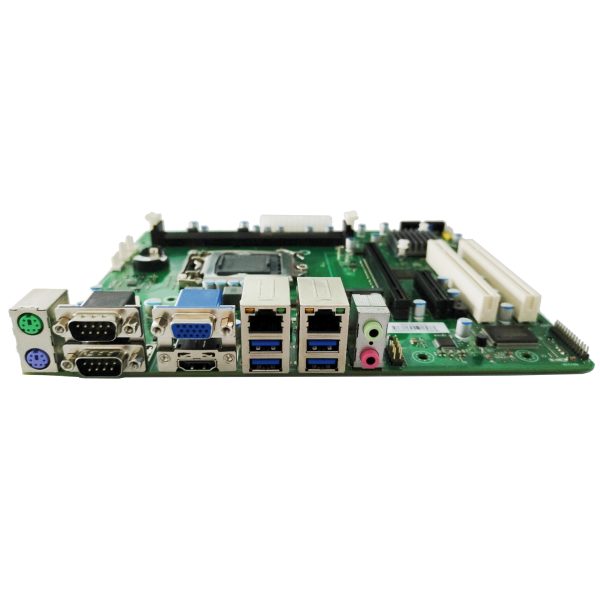

10. Rich I/O interfaces: These include 1HDMI, 1VGA, 2PS/2, 22COM (which only supports RS232), 2USB3.0, 2USB2.0, 2LAN (RT8111HS), 2 audio ports, and other interfaces to meet users’ needs to connect various external devices.

11.The motherboard has complete internal I/O interfaces: 2SATA3.0 interfaces, 1M.2 interface (SATA protocol), 8 expandable USB2.0, 1F_AUDIO, 1CPUFAN, 2SYSFAN, 1FP, 1*LP, T, and other interfaces, which make it convenient for users to connect and expand internal devices.

12.The standad accessories are practical: motherboard + I0 baffle + SATA cable * 1, and you can also choose to install CPU + CPU fan + memory, providing users with basic installation accessories.

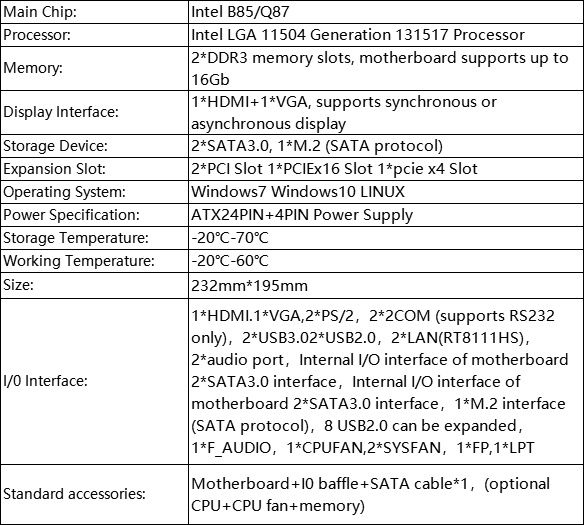

Parameter information：

Application areas

1. Office computer: Rich interfaces and good compatibility can meet the needs of connecting printers, scanners, projectors, and other peripherals in daily office work and can run office software stably.

2. Home entertainment: It supports multiple operating systems and display interfaces, can be connected to display devices such as TVs,  and is used for home viewing, games, and other entertainment activities. The configuration of processors and memory can also meet the performance requirements of general home entertainment.

3 . Small server: It has specific expansion capabilities and stable performance and can be used to build small file servers, mail servers, etc., to meet the server needs of small enterprises or home networks.

4 . Industrial contrIt has strong temperature adaptability and rich I/O interfaces. It can be used in some industrial control scenarios, such as the control terminal of automated production lines, to connect various industrial equipment for data collection and control.
